IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor

IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor
IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor

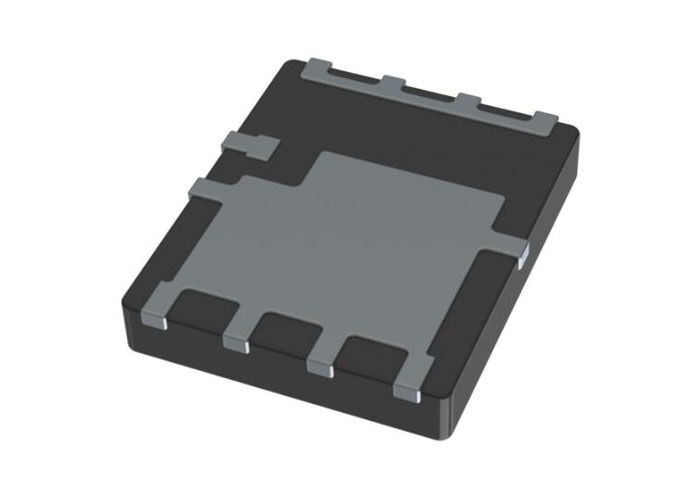

Gambar besar :  IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: IQEH68NE2LM7UCG
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: PG-TTFN-9
Waktu pengiriman: 5-8 Hari Kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor

Deskripsi
Nomor Bagian: IQEH68NE2LM7UCG Transistor Polarit: Saluran-N
Vds - Tegangan Kerusakan Sumber Pembuangan: 25 V Id - Arus Pembuangan Terus Menerus: 338 A
Rds On - Resistensi Sumber Saluran: 680 uOhm Qg - Biaya Gerbang: 22 nC

IQEH68NE2LM7UCG Integrated Circuit Chip 25V OptiMOS™ 7 N-Channel Power MOSFET Transistor



Product Description Of IQEH68NE2LM7UCG

IQEH68NE2LM7UCG is 25V, OptiMOS™ 7 switching optimized power MOSFETs for hard- and soft-switching topologies in PQFN 3.3x3.3 Source-Down package.


Specification Of IQEH68NE2LM7UCG

Series
OptiMOS™ 7
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
25 V
Current - Continuous Drain (Id) @ 25°C
47A (Ta), 338A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @ Id, Vgs
0.68mOhm @ 20A, 10V
Vgs(th) (Max) @ Id
2V @ 369µA
Gate Charge (Qg) (Max) @ Vgs
48 nC @ 10 V
Vgs (Max)
±16V
Input Capacitance (Ciss) (Max) @ Vds
5200 pF @ 12 V
Power Dissipation (Max)
2.5W (Ta), 130W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PG-TTFN-9-3
Package / Case
9-PowerTDFN


Features Of IQEH68NE2LM7UCG

N‑channel, logic level
Very low on‑resistance RDS(on)
Hard- and soft-switching optimizations
Hard-switch.: Miller ratio, FOM, RDS(on)10
Soft-switch.: RDS(on)45, FOMQg
+175°C junction temperature rating
Optimized for hard switching topologies
Optimized for best FOMoss
Excellent Miller ratio for dv/dt ruggedness
Superior thermal resistance
100% avalanche tested


Applications Of IQEH68NE2LM7UCG
Data center and AI data center solutions
48 V intermediate bus converter (IBC)
Telecommunications infrastructure
Power conversion
Server power supply units (PSU)
