IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9

IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9
IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9

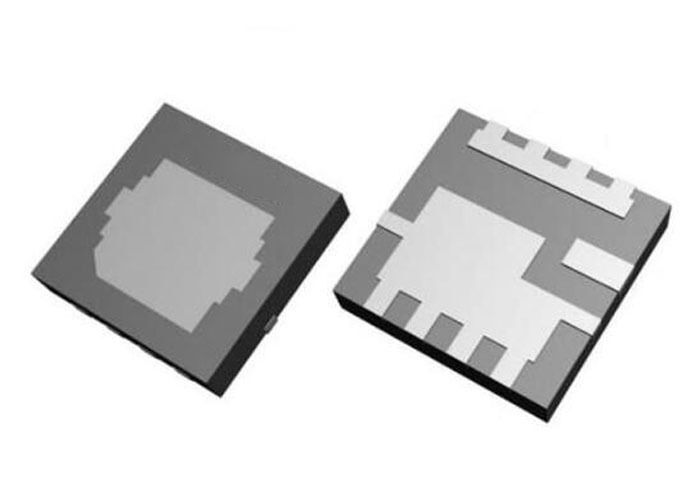

Gambar besar :  IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: IQEH80NE2LM7UCGSC
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: PG-WHTFN-9
Waktu pengiriman: 5-8 Hari Kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9

Deskripsi
Nomor Bagian: IQEH80NE2LM7UCGSC Transistor Polarit: Saluran-N
Vds - Tegangan Kerusakan Sumber Pembuangan: 25 V Id - Arus Pembuangan Terus Menerus: 282 A
Rds On - Resistensi Sumber Saluran: 800 uOhm Pd - Pembuangan Daya: 107 w

IQEH80NE2LM7UCGSC Integrated Circuit Chip 25V OptiMOS™ 7 Power Transistor PG-WHTFN-9​



Product Description Of IQEH80NE2LM7UCGSC

IQEH80NE2LM7UCGSC is OptiMOS™ 7 25 V offers a new level of application-optimization, enabling peak performance for data centers, servers, AI more. The portfolio is available in two technology flavors, including products optimized for hard-switching as well as for soft-switching topologies. Hard-switching optimized products come with an excellent Miller ratio, FOMs and RDS(on)10, while products optimized for soft-switching offer ultra-low RDS(on)45 and FOMQg.


Specification Of IQEH80NE2LM7UCGSC

Series
OptiMOS™ 7
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
25 V
Current - Continuous Drain (Id) @ 25°C
43A (Ta), 282A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @ Id, Vgs
0.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id
2V @ 279µA
Gate Charge (Qg) (Max) @ Vgs
37 nC @ 10 V
Vgs (Max)
±16V
Input Capacitance (Ciss) (Max) @ Vds
3900 pF @ 12 V
Power Dissipation (Max)
2.5W (Ta), 107W (Tc)
Supplier Device Package
PG-WHTFN-9-1
Package / Case
9-PowerWDFN


Features Of IQEH80NE2LM7UCGSC

N‑channel, logic level
Very low on‑resistance RDS(on)
Optimized for hard‑switching topologies
Optimized for best FOMoss
Excellent Miller ratio for dv/dt ruggedness
Superior thermal resistance
100% avalanche tested
Hard- and soft-switching optimizations
Hard-switch.: Miller ratio, FOM, RDS(on)10
Soft-switch.: RDS(on)45, FOMQg
+175°C junction temperature rating
