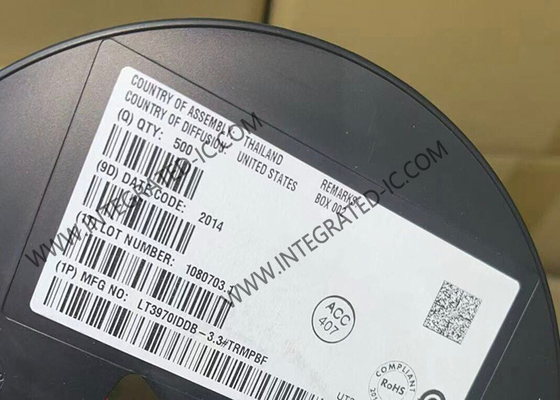

LT3970IDDB-3.3 Integrated Circuit Chip Step Down Regulator 40V Buck Switching Regulator

LT3970IDDB-3.3 Integrated Circuit Chip Step Down Regulator 40V Buck Switching Regulator

Product Overviews Of LT3970IDDB-3.3

LT3970IDDB-3.3 is an adjustable frequency monolithic buck switching regulator that accepts a wide input voltage range up to 40V, and consumes only 2.5μA of quiescent current. A high efficiency switch is included on the die along with the catch diode, boost diode, and the necessary oscillator, control and logic circuitry.

Specification Of LT3970IDDB-3.3

Features Of LT3970IDDB-3.3

Low Ripple Burst Mode Operation
2.5µA IQ at 12VIN to 3.3VOUT
Output Ripple < 5mVP-P
Wide Input Voltage Range: 4.2V to 40V Operating
Adjustable Switching Frequency: 200kHz to 2.2MHz
Integrated Boost and Catch Diodes
350mA Output Current
Fixed Output Voltages: 3.3V, 3.42V, 5V; 1.8μA IQ at 12VIN
Accurate 1V Enable Pin Threshold
Low Shutdown Current: IQ = 0.7μA
Internal Sense Limits Catch Diode Current
Power Good Flag
Output Voltage: 1.21V to 25V
Internal Compensation

Applications Of LT3970IDDB-3.3
Automotive Battery Regulation
Power for Portable Products
Industrial Supplies
