IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1

IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1
IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1 IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1

Gambar besar :  IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1

Detail produk:
Place of Origin: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Model Number: IM69D120V01
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 10
Harga: Contact for Sample
Packaging Details: PG-LLGA-5-1
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Kontak

IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1

Deskripsi
Part Number: IM69D120V01 Current Consumption: 980 µA
Sensitivity: -26 dBFS SNR: 69 dB(A)
Interfaces: Digital PDM Supply Voltage: 1.62V - 3.60V
Menyoroti:

IM69D120V01

,

IM69D120V01 Sensor IC

,

Digital XENSIV MEMS Microphone

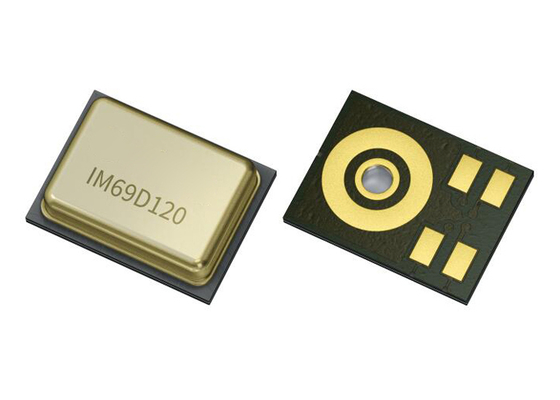

IM69D120V01 Sensor IC High Performance Digital XENSIV MEMS Microphone PG-LLGA-5-1



Product Description Of IM69D120V01
IM69D120V01 is High performance digital XENSIV MEMS microphone. IM69D120V01 is designed for applications where low self-noise (high SNR), wide dynamic range, low distortions and a high acoustic overload point is required.



Specification Of IM69D120V01

Type
MEMS (Silicon)
Output Type
Digital, PDM
Direction
Omnidirectional
Frequency Range
20 Hz ~ 20 kHz
Sensitivity
-26dB ±1dB
S/N Ratio
69dB
Voltage Range
1.62 V ~ 3.6 V
Current - Supply
1.3 mA
Port Location
Bottom
Termination
Solder Pads
Size / Dimension
0.157" L x 0.118" W (4.00mm x 3.00mm)
Height (Max)
0.051" (1.30mm)
Shape
Rectangular



Features Of IM69D120V01
Dynamic range of 95dB
- Signal to noise ratio of 69dB(A) SNR
- <1% total harmonic distortions up to 118dBSPL
- Acoustic overload point at 120dBSPL
Sensitivity (± 1dB) and phase (± 2° @1kHz) matched
Flat frequency response with low frequency roll oȄ at 28Hz
Very fast analog to digital conversion speed (6µs latency @1kHz
Power optimized modes determined by PDM clock frequency
Package dimensions: 4mm x 3mm x 1.2mm
PDM output
Omnidirectional pickup pattern



Typical Applications Of IM69D120V01
Devices with Voice User Interface (VUI)
- Smart speakers
- Home automation
- IOT devices
Active Noise Cancellation (ANC) headphones and earphones
High quality audio capturing
- Conference systems
- Cameras and camcorders
Industrial or home monitoring with audio pattern detection
