ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

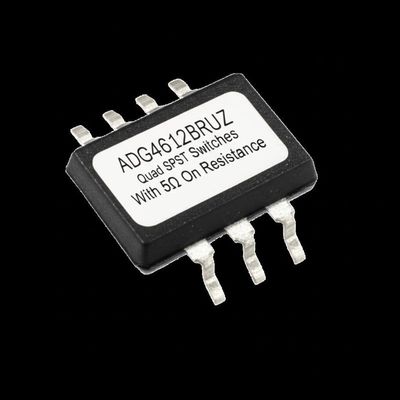

Gambar besar : ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	ADG4612BRUZ

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	TSSOP-16
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	10000 buah per hari

Kontak

ADG4612BRUZ Integrated Circuit Chip with 5Ω On Resistance 4 Channel Quad SPST Switch for 3V to 12V Supply Voltage

Deskripsi

Nomor bagian:	ADG4612BRUZ	Jumlah Saluran::	4 saluran
Konfigurasi::	4xSPST	Pada Perlawanan - Maks::	6.1 Ohm
Tegangan suplai - min::	3 V	Tegangan suplai - maks::	12 v
Menyoroti:	5Ω On Resistance Integrated Circuit Chip , 4 Channel IC Chip , 3V to 12V Supply Voltage Quad SPST Switch

ADG4612BRUZ Integrated Circuit Chip Quad SPST Switches With 5Ω On Resistance

Product Description

The ADG4612BRUZ contains four independent single-pole/single-throw (SPST) switches. These switches activate with Logic 1 on the appropriate control input. Each switch conducts equally well in both directions when on and supports an input signal range that extends to the power supplies.

Specifications

Parameter	Value
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	5.1Ω
Channel-to-Channel Matching (ΔRon)	50mΩ
Voltage - Supply, Single (V+)	3V ~ 12V
Voltage - Supply, Dual (V±)	±3V ~ 5.5V
Switch Time (Ton, Toff) (Max)	73ns, 91ns
-3db Bandwidth	250MHz
Charge Injection	292pC
Channel Capacitance (CS(off), CD(off))	11.5pF, 11.5pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-74dB @ 1MHz
Operating Temperature	-40°C ~ 105°C (TA)

Key Features

Power Off Protection
Switch guaranteed OFF with no power supplies present
Inputs are high impedance with no power
Switch turns OFF if input > VDD + VT
Over-voltage protection up to +16V
PSS Robust
Negative Signal Capability passes signals down to -5.5V
6.1Ω Max On Resistance
1.4Ω On Resistance Flatness
±3V to ±5.5V dual supply
3V to 12V single supply
3V logic-compatible inputs
Rail-to-rail operation
16-lead TSSOP and 16 lead 3mm x 3mm LFCSP packages

Applications

Hot swap applications
Data acquisition systems
Battery-powered systems
Automatic test equipment
Communication systems
Relay Replacement
