PMBus 1.2 Compliant Integrated Circuit Chip DC-DC Converter with 20A Output Current and 4.5V to 18V Input Voltage

PMBus 1.2 Compliant Integrated Circuit Chip DC-DC Converter with 20A Output Current and 4.5V to 18V Input Voltage
PMBus 1.2 Compliant Integrated Circuit Chip DC-DC Converter with 20A Output Current and 4.5V to 18V Input Voltage PMBus 1.2 Compliant Integrated Circuit Chip DC-DC Converter with 20A Output Current and 4.5V to 18V Input Voltage

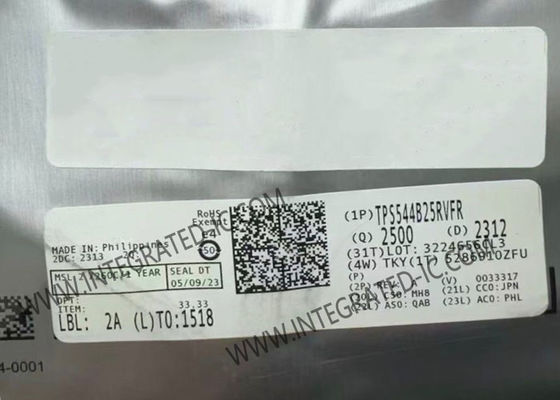

Gambar besar :  PMBus 1.2 Compliant Integrated Circuit Chip DC-DC Converter with 20A Output Current and 4.5V to 18V Input Voltage

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: TPS544B25RVFR
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: LQFN-40
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 10000 buah per hari
Kontak

PMBus 1.2 Compliant Integrated Circuit Chip DC-DC Converter with 20A Output Current and 4.5V to 18V Input Voltage

Deskripsi
Nomor bagian: TPS544B25RVFR Tegangan keluaran:: 500 mV hingga 5,5 V
Arus keluaran:: 20 A Jumlah output:: 1 output
Tegangan Input - Min:: 4,5 V Tegangan input - Max:: 18 V
Menyoroti:

PMBus 1.2 Compliant Integrated Circuit Chip

,

20A Output Current DC-DC Converter

,

4.5V to 18V Input Voltage Buck Converter

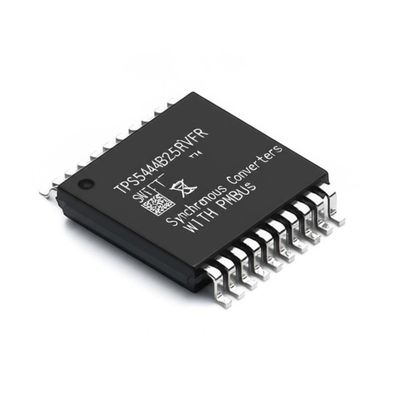

TPS544B25RVFR Integrated Circuit Chip SWIFT™ Synchronous Buck Converters With PMBus™
Product Description
The TPS544B25RVFR is a PMBus 1.2 compliant, non-isolated DC-DC converter with integrated FETs, capable of high-frequency operation and 20-A or 30-A current output from a compact 5 mm * 7 mm package. Its high-frequency, low-loss switching is enabled by an integrated NexFET™ power stage and optimized drivers, making it ideal for high-density power solutions. The PMBus interface supports AVS through VOUT_COMMAND, flexible converter configuration, and monitoring of key parameters including output voltage, current, and optional external temperature. Fault condition responses can be customized to restart, latch-off, or ignore based on system requirements.
Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output (Min/Fixed) 0.5V
Voltage - Output (Max) 5.5V
Current - Output 20A
Frequency - Switching 200kHz ~ 1MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Key Features
  • PMBus 1.2 Compliant Converters: 20 A and 30 A
  • Input Voltage Range: 4.5 V to 18 V
  • Output Voltage Range: 0.5 V to 5.5 V
  • Compact 5 mm * 7 mm LQFN Package
  • Single Thermal Pad
  • Integrated 5.5-mΩ and 2.0-mΩ Stacked NexFET™ Power Stage
  • 500-mV to 1500-mV Reference for Adaptive Voltage Scaling (AVS) and Margining through PMBus
  • 0.5% Reference Accuracy at 600 mV and Above
  • Lossless Low-Side MOSFET Current Sensing
  • Voltage Mode Control with Input Feed-Forward
  • Differential Remote Sensing
  • Monotonic Start-Up into Pre-Biased Output
  • Output Voltage and Output Current Reporting
  • External Temperature Monitoring with 2N3904 Transistor
  • Programmable via the PMBus interface
  • VOUT_COMMAND and AVS VOUT Transition Rate
  • Overcurrent Protection with Thermal Compensation
  • UVLO, Soft-Start and Soft-Stop
  • PGOOD, OV, UV, OT Levels
  • Customizable Fault Responses
  • Turn-On and Turn-Off Delays
  • Thermal Shutdown
  • Pin Strapping for Switching Frequency: 200 kHz to 1 MHz
  • Frequency Synchronization to an External Clock
  • Footprint Compatible 20-A, 30-A Converters
Applications
  • Test and Instrumentation
  • Ethernet Switches, Optical Switches, Routers, Base Stations
  • Servers
  • Enterprise Storage SSD
  • High-Density Power Solutions
