SI52144-A01AGMR Integrated Circuit Chip PCIe Clock Generator with 4 Output 100 MHz Max Frequency and 25 MHz Input

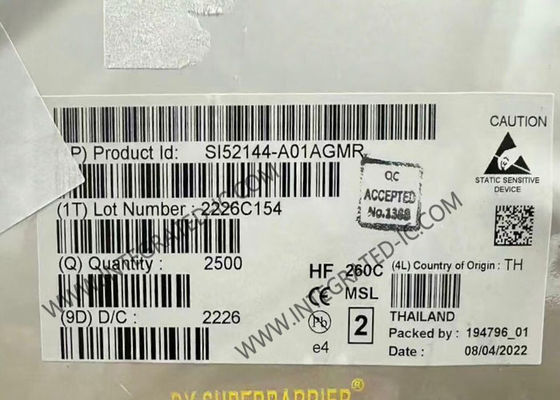

Gambar besar : SI52144-A01AGMR Integrated Circuit Chip PCIe Clock Generator with 4 Output 100 MHz Max Frequency and 25 MHz Input

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	SI52144-A01AGMR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	QFN-24
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	10000 buah per hari

Kontak

SI52144-A01AGMR Integrated Circuit Chip PCIe Clock Generator with 4 Output 100 MHz Max Frequency and 25 MHz Input

Deskripsi

Nomor bagian:	SI52144-A01AGMR	Jumlah output::	4 Keluaran
Max Output Freq::	100 MHz	Frekuensi input maksimum::	25 MHz
Siklus Tugas - Max::	55 %	Naik opelet::	1 ps
Menyoroti:	4 Output PCIe Clock Generator , 100 MHz Integrated Circuit Chip , 25 MHz PCIe Clock Generator

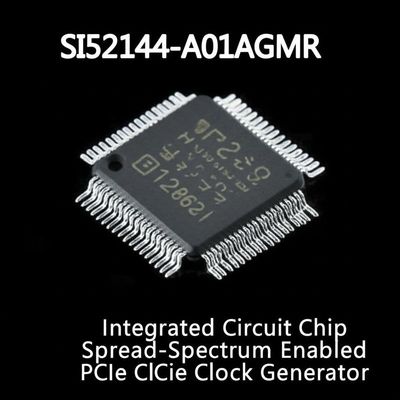

SI52144-A01AGMR Integrated Circuit Chip Spread-Spectrum Enabled PCIe Clock Generator

Product Description

The SI52144-A01AGMR is a spread-spectrum enabled PCIe clock generator capable of sourcing four PCIe clocks. This device features four hardware output enable pins for controlling outputs and one dedicated hardware pin for spread spectrum control on PCIe clock outputs. Additionally, it offers I2C programmability for dynamic control of skew, edge rate, and amplitude on differential signals, enabling optimal signal integrity and EMI performance.

Specifications

Specification	Value
PLL	Yes
Main Purpose	PCI Express (PCIe)
Input	Clock, Crystal
Output	HCSL
Number of Circuits	1
Ratio - Input:Output	1:4
Differential - Input:Output	No/Yes
Frequency - Max	100MHz
Voltage - Supply	3.135V ~ 3.465V
Operating Temperature	-40°C ~ 85°C

Key Features

PCI-Express Gen 1, Gen 2, Gen 3, and Gen 4 common clock compliant
Gen 3 SRNS Compliant
Supports Serial ATA (SATA) at 100 MHz
Low power, push-pull HCSL compatible differential outputs
No termination resistors required
Dedicated output enable hardware pins for each clock output
Dedicated hardware pin for spread spectrum control
Four PCI-Express clocks
25 MHz crystal input or clock input
Signal integrity tuning
I2C support with readback capabilities
Triangular spread spectrum profile for maximum EMI reduction
Industrial temperature range (-40 to 85 °C)
3.3 V power supply
24-pin QFN package

Applications

Network attached storage
Multi-function printer
Wireless access point
Routers
