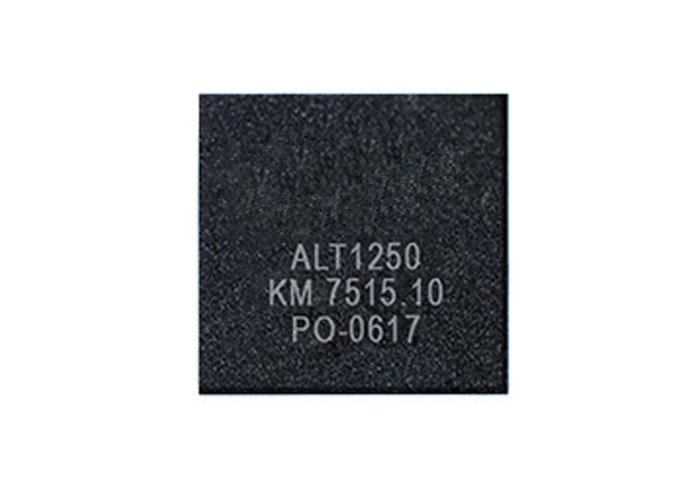

Product Description Of ALT1250TG
ALT1250TG is a highly-integrated dual mode LTE-M/NB-IoT modem with 2G fallback, engineered specifically for cellular IoT applications that prioritize battery life and small form factors. This advanced modem solution features an integrated SIM (iSIM), MCU, and rich application layer, enabling miniature module sizes as small as 100mm². It is 5G ready and offers optional satellite connectivity (NTN), ensuring it can evolve alongside your IoT service and cellular network.

Features Of ALT1250TG
Ultra-Low Power Consumption
The ALT1250TG modem sets a new standard in ultra-low power consumption, significantly extending battery life and reducing maintenance costs. With its advanced power management capabilities, the ALT1250TG enables IoT devices to operate for extended periods, ranging from weeks for smart wearables to over a decade for smart meters. By eliminating frequent battery replacements, the ALT1250TG modem powers a more sustainable and efficient IoT ecosystem.

Smallest Form Factor
The ALT1250TG modem is ideal for space-constrained applications. Its high level of integration and minimal required external components enables module sizes as small as 100mm², making it perfect for the smallest cellular IoT modules on the market.

With support for dual-mode LTE-M/NB-IoT, GNSS & cellular-based positioning, an integrated MCU, and an iSIM, the ALT1250TG packs a punch without compromising on size.

Robust Security
Security is at the core of the ALT1250TG modem. With a hardware-based secure element and an integrated SIM (iSIM), the ALT1250TG provides a robust foundation for protecting your IoT devices and data. The iSIM meets the stringent security requirements set by tier-1 mobile network operators, ensuring your devices remain secure throughout their lifecycle.

Seamless Integration
The ALT1250TG modem incorporates all the essential components needed for rapid development and deployment of cellular IoT applications. Its integrated application MCU, running on a separate power domain, allows for easy customization and development of user applications. The ALT1250TG also offers a comprehensive set of interfaces and protocols, making it simple to integrate with your existing ecosystem.

Tech Highlights Of ALT1250TG
LTE Radio Technology Support
CAT-M1 R13 with DL/UL speeds of 300/375 Kbps
CAT-M1 R14 with DL/UL speeds of 588/1119 Kbps
CAT-NB1 R13 with DL/UL speeds of 27/65 Kbps
CAT-NB2 R14 with DL/UL speeds of 127/158 Kbps
Highly Integrated SoC
6th generation Software Defined Radio architecture featuring maximum flexibility at extremely low power
Integrated in-chip: LTE CAT-M1/NB1/NB2 modem with 2G fallback, GNSS, radio transceiver, PLL supporting TCXO inputs, PMU with voltage regulators and RTC
Integrated ARM Cortex M4 MCU subsystem for customer developed applications
Carrier grade integrated SIM (iSIM)
Secure boot architecture and a robust hardware-based security framework
Integrated voice processing for VoLTE and Voice Over-the-Top applications
WLCSP packaging for low cost devices
Location Services
Assisted GPS and GLONASS navigation systems are supported
Cellular-based location
OneSKUTM
Single hardware design supports multiple bands
HD-FDD: 1, 2, 3, 4, 5, 8, 12, 13, 14, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85, 255
HD-TDD: 33, 34, 35, 36, 37, 39
Support for 410-467.5 MHz bands 31, 72, 73, 87, 88
NTN: n255, n256
Interfaces
UART, SPI, FS USB2.0, USIM or eUICC, I2S/PCM audio, GPIOs, I2C, Auxiliary ADC and PWM

Applications Of ALT1250TG
Smart Meters
Wearables
Asset Tracking
Vehicle Telematics
Smart Cities
