TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch with 3 A Output Current 350 mOhms On Resistance and -40°C to +150°C Operating Temperature

Gambar besar : TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch with 3 A Output Current 350 mOhms On Resistance and -40°C to +150°C Operating Temperature

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	Tle6228gp

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	DSO-22
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	10000 buah per hari

Kontak

TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch with 3 A Output Current 350 mOhms On Resistance and -40°C to +150°C Operating Temperature

Deskripsi

Nomor bagian:	Tle6228gp	Jumlah output::	4 Keluaran
Arus keluaran::	3 a	Pada Perlawanan - Maks::	350 mOhm
Suhu operasi minimum::	- 40 C	Suhu operasi maksimum::	+ 150 C
Menyoroti:	3 A Output Current Integrated Circuit Chip , 350 mOhms On Resistance Low-Side Switch , -40°C to +150°C Operating Temperature Smart Power Technology

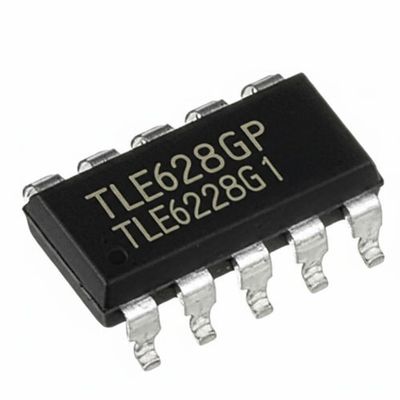

TLE6228GP Integrated Circuit Chip Smart Quad Channel Low-Side Switch DSO-22

Product Description

TLE6228GP is quad channel Low-Side-Switch (2x5A/2x3A) in Smart Power Technology (SPT) with four separate inputs and four open drain DMOS output stages. TLE6228GP is fully protected by embedded protection functions and designed for automotive and industrial applications. Each channel has its own status signal for diagnostic feedback, making it particularly suitable for ABS or Powertrain Systems.

Specifications

Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.8V ~ 32V
Voltage - Supply (Vcc/Vdd)	Not Required
Rds On (Typ)	230mOhm, 280mOhm
Input Type	Non-Inverting
Fault Protection	Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)

Features

Shorted Circuit Protection
Overtemperature Protection
Overvoltage Protection
Parallel Control of the Inputs (PWM Applications)
Separate Diagnostic Pin for Each Channel
Power - SO 20 - Package with integrated cooling area
Standby mode with low current consumption
µC compatible Input
Electrostatic Discharge (ESD) Protection
Green Product (RoHS compliant)
AEC qualified

Applications

All kinds of resistive and inductive loads (relays, electromagnetic valves)
µC compatible power switch for 12 and 24 V applications
Solenoid control switch in automotive and industrial control systems
Robotic Controls

Other Supply Product Types

Part Number	Package
1SD110PJ3F43E3VG	1760-BBGA
1SG085HN3F43I2VG	1760-BBGA
1SG085HN2F43E2VG	1760-BBGA
5AGTFD7K3F40I3G	1517-BBGA
1SG085HN3F43E2LG	1760-BBGA
1SG166HN3F43E3VG	1760-BBGA
1SG165HN3F43E3VG	1760-BBGA
1SG085HN3F43E3XG	1760-BBGA
5AGZME7K3F40I4G	1517-BBGA
5AGZME7K2F40C3G	1517-BBGA

Frequently Asked Questions

Q: Are your products original?

A: Yes, all products are original, new original import is our purpose.

Q: Which Certificates do you have?

A: We are ISO 9001:2015 Certified Company and member of ERAI.

Q: Can you support small quantity order or sample? Is the sample free?

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

Q: How to ship my order? Is it safe?

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

Q: What about the lead time?

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
