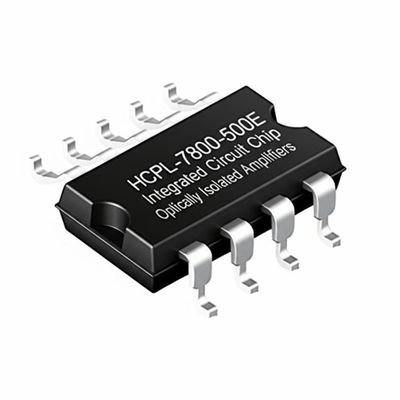

HCPL-7800-500E Integrated Circuit Chip 4.5V to 5.5V Optically Isolated Amplifier with DIP-8 Gull Wing Package

HCPL-7800-500E Integrated Circuit Chip 4.5V to 5.5V Optically Isolated Amplifier with DIP-8 Gull Wing Package
HCPL-7800-500E Integrated Circuit Chip 4.5V to 5.5V Optically Isolated Amplifier with DIP-8 Gull Wing Package HCPL-7800-500E Integrated Circuit Chip 4.5V to 5.5V Optically Isolated Amplifier with DIP-8 Gull Wing Package

Gambar besar :  HCPL-7800-500E Integrated Circuit Chip 4.5V to 5.5V Optically Isolated Amplifier with DIP-8 Gull Wing Package

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: HCPL-7800-500E
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: Sayap Camar DIP-8
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: Tt
Menyediakan kemampuan: 10000 buah per hari
Kontak

HCPL-7800-500E Integrated Circuit Chip 4.5V to 5.5V Optically Isolated Amplifier with DIP-8 Gull Wing Package

Deskripsi
Nomor bagian: HCPL-7800-500E Vos - Tegangan Offset Masukan:: 2 mV
Dapatkan V/V:: 18,31dB Arus pasokan operasi:: 16 mA
Berat unit:: 10,584 gram Kemasan: Sayap Camar DIP-8
Menyoroti:

4.5V Isolation Amplifier

,

5.5V Integrated Circuit Chip

,

DIP-8 Gull Wing Amplifier

HCPL-7800-500E Integrated Circuit Chip 4.5V T5.5 V Optically Isolated Amplifiers DIP-8 Gull Wing
Product Description
The HCPL-7800-500E isolation amplifier family is designed for current sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor, and the resulting analog voltage drop is sensed by the HCPL-7800-500E. A differential output voltage is created on the other side of the optical isolation barrier. This differential output voltage is proportional to the motor current and can be converted to a single-ended signal using an op-amp. The HCPL-7800-500E is designed to ignore very high common-mode transient slew rates (of at least 10 kV/µs), making it ideal for modern switching inverter motor drives.
Specifications
Amplifier Type Isolation
Number of Circuits 1
-3db Bandwidth 100 kHz
Current - Input Bias 500 nA
Voltage - Input Offset 300 µV
Current - Supply 10.9mA
Current - Output / Channel 16 mA
Voltage - Supply Span (Min) 4.5 V
Voltage - Supply Span (Max) 5.5 V
Operating Temperature -40°C ~ 85°C
Features
  • 15 kV/µs Common-Mode Rejection at VCM = 1000 V
  • Compact, Auto-Insertable Standard 8-pin DIP Package
  • 0.00025 V/V/°C Gain Drift vs. Temperature
  • 0.3 mV Input Offset Voltage
  • 100 kHz Bandwidth
  • 0.004% Nonlinearity
  • Worldwide Safety Approval: UL 1577 (3750 Vrms/1 min.) and CSA, IEC/EN/DIN EN 60747-5-2
  • Advanced Sigma-Delta (Σ−∆) A/D Converter Technology
  • Fully Differential Circuit Topology
Applications
  • Motor Phase and Rail Current Sensing
  • Inverter Current Sensing
  • Switched Mode Power Supply Signal Isolation
  • General Purpose Current Sensing and Monitoring
  • General Purpose Analog Signal Isolation
