CY8C4014LQI-422 Microcontroller MCU PSoC 4 32-Bit ARM Cortex-M0 with 16MHz Clock and 16 kB Flash Memory

Gambar besar : CY8C4014LQI-422 Microcontroller MCU PSoC 4 32-Bit ARM Cortex-M0 with 16MHz Clock and 16 kB Flash Memory

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	CY8C4014LQI-422

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	QFN-24
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	Tt
Menyediakan kemampuan:	10000 buah per hari

Kontak

CY8C4014LQI-422 Microcontroller MCU PSoC 4 32-Bit ARM Cortex-M0 with 16MHz Clock and 16 kB Flash Memory

Deskripsi

Nomor bagian:	CY8C4014LQI-422	Inti::	ARM CORTEX M0
Ukuran Memori Program::	16 kB	Lebar bus data::	32 bit
Frekuensi jam maksimum::	16 MHz	Jumlah I/O::	20 I/O
Menyoroti:	32-Bit Microcontroller MCU , 16MHz PSoC 4 , 16 kB Flash ARM Cortex-M0

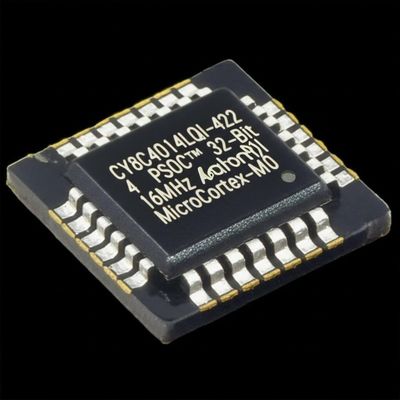

CY8C4014LQI-422 Microcontroller MCU PSOC™ 4 32-Bit 16MHz ARM Cortex-M0 Microcontroller

Product Description

The CY8C4014LQI-422 PSoC® 4 is a scalable and reconfigurable platform architecture for programmable embedded system controllers featuring an Arm® Cortex™-M0 CPU. This innovative solution combines programmable analog and digital blocks with flexible automatic routing. As the smallest member of the PSoC 4 platform architecture, the PSoC 4000 product family integrates microcontroller capabilities with standard communication peripherals, best-in-class capacitive touch-sensing (CapSense), and general-purpose analog functionality. Designed for upward compatibility with other PSoC 4 platform members, it supports evolving application requirements.

Specifications

Core Processor	ARM® Cortex®-M0
Core Size	32-Bit
Speed	16MHz
Connectivity	I2C
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	20
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 5.5V
Data Converters	D/A 1x7b, 1x8b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

32-bit MCU Subsystem with 16-MHz Arm Cortex-M0 CPU
Up to 16 KB of flash with Read Accelerator and 2 KB of SRAM
Programmable Analog including two current DACs (IDACs) and low-power comparator
Low Power operation from 1.71-V to 5.5-V with Deep Sleep mode
Capacitive Sensing with best-in-class SNR and water tolerance
Multi-master I2C block with wake-up on address match capability
One 16-bit timer/counter/pulse-width modulator (TCPWM) block
Up to 20 Programmable GPIO Pins with configurable drive modes
Available in multiple package options: 28-pin SSOP, 24-pin QFN, 16-pin SOIC/QFN, 16 ball WLCSP, and 8-pin SOIC
PSoC Creator Design Environment with schematic design entry and automatic routing
Compatible with industry-standard Arm development tools

Other Available Products

Part Number	Package
PXD-M30-24WS15	6-DIP MODULE
PXD20-24D15	6-DIP MODULE
PH100A280-24	MODULE
PH600A280-24	MODULE
CC1R5-1203SF-E	7-DIP MODULE
CCG3-24-15SF	6-DIP MODULE
CCG3-24-12DF	6-DIP MODULE
CCG3-48-12DF	6-DIP MODULE
CCG3-48-15SF	6-DIP MODULE
CCG3-12-15DF	6-DIP MODULE
CCG3-12-03SF	6-DIP MODULE
CCG3-48-15DF	6-DIP MODULE
CCG3-12-12SF	6-DIP MODULE
CCG3-24-15DF	6-DIP MODULE
CCG3-48-05SF	6-DIP MODULE
CCG1R5-48-15SF	6-DIP MODULE
CCG1R5-48-12DF	6-DIP MODULE
CCG1R5-12-12SF	6-DIP MODULE
CCG1R5-48-03SF	6-DIP MODULE
CCG1R5-48-12SF	6-DIP MODULE
CCG1R5-24-12SF	6-DIP MODULE
CCG1R5-12-03SF	6-DIP MODULE
CCG1R5-48-05SF	6-DIP MODULE
CCG1R5-12-05SF	6-DIP MODULE
PYH200-72WS12	MODULE
PYH200-72WS24	MODULE
PYH200-72WS48	MODULE
CN300B110-15	MODULE
CN300B110-15/CO	MODULE
CN300B110-24	MODULE

Frequently Asked Questions

Q: Are your products original?

A: Yes, all products are original, new original import is our purpose.

Q: Which Certificates do you have?

A: We are ISO 9001:2015 Certified Company and member of ERAI.

Q: Can you support small quantity order or sample? Is the sample free?

A: Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.

Q: How to ship my order? Is it safe?

A: We use express carriers including DHL, Fedex, UPS, TNT, and EMS. You may also suggest your preferred forwarder. All products are securely packaged, and we guarantee product safety, taking responsibility for any damage during transit.

Q: What about the lead time?

A: Stock items ship within 5 working days. For non-stock items, we will confirm lead time based on your order quantity.
