LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications
LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

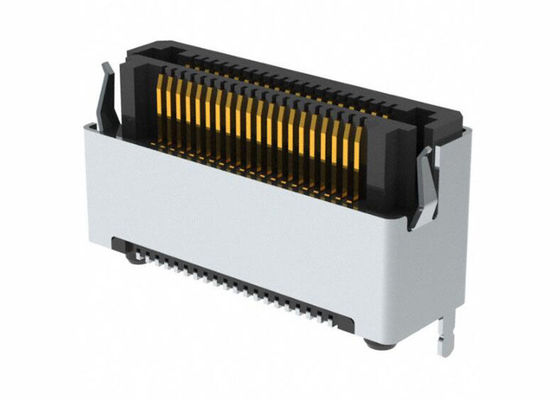

Gambar besar :  LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: LSHM-120-06.0-F-DV-ASK-TR
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: 40POS
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Deskripsi
Nomor bagian: LSHM-120-06.0-F-DV-ASK-TR Jumlah posisi: 40 Posisi
Melempar: 0,5 mm (0,02 inci) Peringkat saat ini: 2 A
Peringkat tegangan: 160 VAC Laju data: 16 Gbps
Menyoroti:

0.50mm Pitch LSHM Connectors

,

40 Position Razor Beam Connectors

,

14 Gbps Hermaphroditic Connectors

LSHM-120-06.0-F-DV-A-S-K-TR Connectors 0.50mm Razor Beam LSHM Connectors 40POS
Product Description
The LSHM-120-06.0-F-DV-A-S-K-TR is a 0.50mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip with optional shielding. This high-density, rugged connector is designed for board-to-board and board-to-cable applications, featuring EMI protection options. The hermaphroditic design with Razor Beam™ fine pitch contact system saves PCB space in all axes and is rated at 14 Gbps per contact.
Specifications
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place, Shielded
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Mated Stacking Heights 8.5mm, 9mm, 10mm, 12mm
Height Above Board 0.293" (7.45mm)
Key Features
  • Shielded option for EMI protection
  • Lubricated option available
  • Up to 100 I/Os
  • Ten stack height options from 5 mm to 12 mm
  • Self-mating system reduces inventory cost
  • Parallel, perpendicular and coplanar systems
  • Current rating: 2.0 A max
  • Voltage rating: 160 VAC/226 VDC max
  • Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
  • Audible click when mated

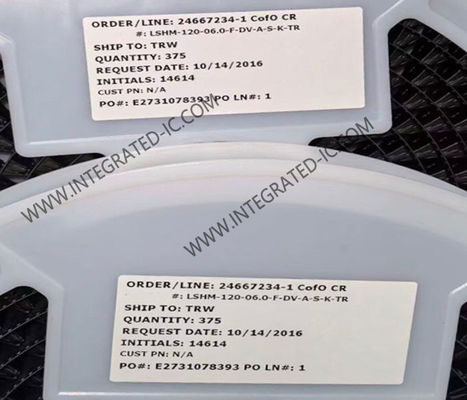

Product Image
LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications 0
