2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications
2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications 2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

Gambar besar :  2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: 2199119-3
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: 67POS
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications

Deskripsi
Nomor bagian: 2199119-3 Produk: M.2 (NGFF)
Jumlah posisi: 67 Posisi Peringkat saat ini: 500 Ma
Resistensi isolasi: 500 MOhms Peringkat tegangan: 50 v
Menyoroti:

67 Position M.2 Connector

,

0.50mm Pitch M.2 Connector

,

500 mA Current Rating M.2 Connector

2199119-3 Connectors NGFF Mini Card M.2 Connectors 67POS Card Edge Connectors
Product Description

The 2199119-3 is a 0.50mm pitch M.2 (NGFF) Mini Card connector with 67 positions, gold-plated contacts, and double-sided module configuration.

Specifications
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Positions 67
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Color Black
Operating Temperature -40°C ~ 80°C
Insulation Material Thermoplastic
Key Features
  • Board-to-Board connector system
  • Right angle PCB mount orientation
  • Gold-plated contacts for reliable connectivity
  • High temperature thermoplastic housing
  • Compact dimensions: 21.9mm * 8.7mm * 3.2mm
  • Wide operating temperature range (-40°C to 85°C)
  • Surface mount termination for secure PCB attachment

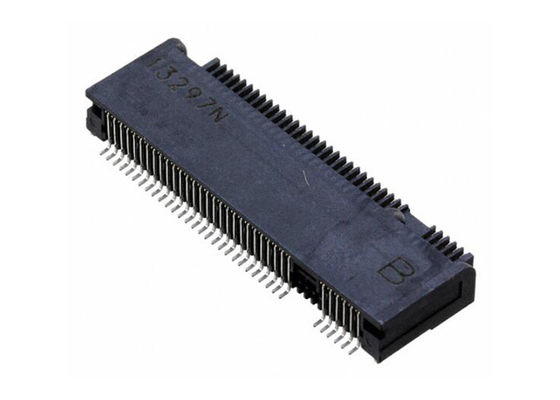

Product Image
2199119-3 67 Position M.2 Connector with 0.50mm Pitch and 500 mA Current Rating for NGFF Mini Card Applications 0
