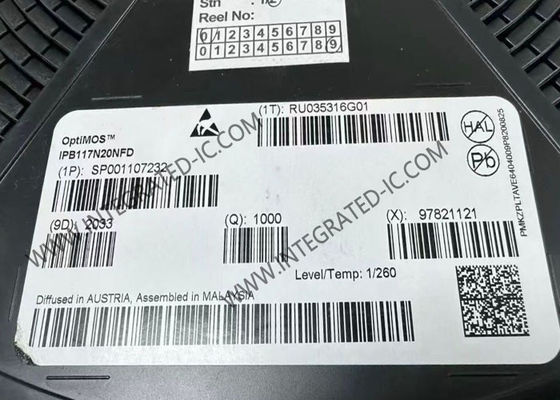

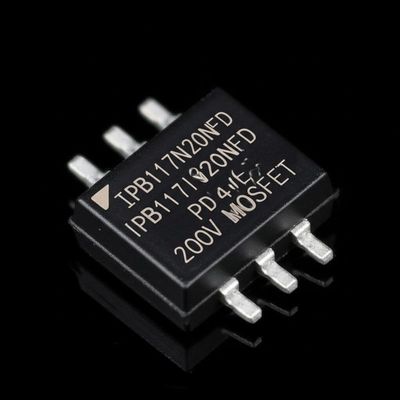

IPB117N20NFD 200V 84A 10.3 mOhms MOSFET Transistor Power Transistor for Hard Switching Applications

Gambar besar : IPB117N20NFD 200V 84A 10.3 mOhms MOSFET Transistor Power Transistor for Hard Switching Applications

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	IPB117N20NFD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	PG-TO263-3
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

IPB117N20NFD 200V 84A 10.3 mOhms MOSFET Transistor Power Transistor for Hard Switching Applications

Deskripsi

Nomor Bagian:	IPB117N20NFD	VDS - Tegangan Breakdown Drain-Source:	200 V
Id - Arus Tiriskan Terus Menerus:	84 A	Rds On - Resistensi Drain-Source:	10,3 mOhm
Qg - Biaya Gerbang:	87 nC	PD - Dissipasi Daya:	300 w
Menyoroti:	200V MOSFET Transistor , 84A Power Transistor , 10.3 mOhms Integrated Circuit Chip

IPB117N20NFD Integrated Circuit Chip OptiMOS FD Power Transistor 200V MOSFET Transistor

Product Description

The IPB117N20NFD is a 200V OptiMOS™ Fast Diode (FD) Power Transistor optimized for body diode hard commutation. These devices are ideal for hard switching applications including telecom, industrial power supplies, Class D audio amplifiers, motor control, and DC-AC inverters.

Specifications

Series	OptiMOS™
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	84A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	11.7mOhm @ 84A, 10V
Vgs(th) (Max) @ Id	4V @ 270µA
Gate Charge (Qg) (Max) @ Vgs	87 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6650 pF @ 100 V
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-3-2
Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Key Features

N-channel, normal level
Improved hard commutation ruggedness
Optimized hard switching behavior
Industry's lowest Rds(on), Qg and Qrr
175°C operating temperature
RoHS compliant - halogen free

Applications

Traction
