UC1843AMDREP Enhanced Current-Mode PWM Controller Integrated Circuit Chip with 500 kHz Operation and Low Start-Up Current (<0.5 mA)

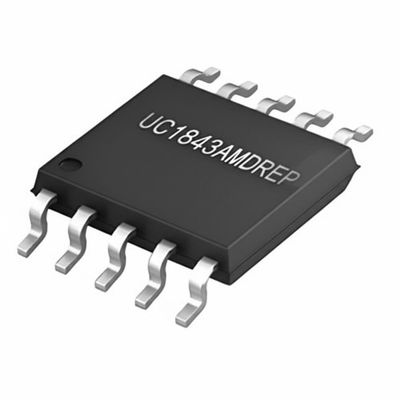

Gambar besar : UC1843AMDREP Enhanced Current-Mode PWM Controller Integrated Circuit Chip with 500 kHz Operation and Low Start-Up Current (<0.5 mA)

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	UC1843AMDREP

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	SOIC-8
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	TT
Menyediakan kemampuan:	10000 buah per hari

Kontak

UC1843AMDREP Enhanced Current-Mode PWM Controller Integrated Circuit Chip with 500 kHz Operation and Low Start-Up Current (<0.5 mA)

Deskripsi

Nomor Bagian:	UC1843AMDREP	Beralih Frekuensi::	500 kHz
Jumlah output::	1 output	Siklus Tugas - Max::	100 %
Tegangan keluaran::	5 v	Arus keluaran::	1 a
Menyoroti:	500 kHz Operation PWM Controller , Low Start-Up Current Integrated Circuit Chip , Enhanced Current-Mode PWM Controller

UC1843AMDREP Integrated Circuit Chip Enhanced Current-Mode PWM Controller

Product Description

The UC1843AMDREP control IC is a pin-for-pin compatible improved version of the UC3842/3/4/5 family, designed to control current mode switched mode power supplies. Key improvements include:

Start up current guaranteed to be less than 0.5 mA
Oscillator discharge trimmed to 8.3 mA
During under voltage lockout, the output stage can sink at least 10 mA at less than 1.2 V for VCC over 5 V

Specifications

Applications	PWM Controller
Voltage - Input	-0.3V ~ 6.3V
Voltage - Supply	7.9V ~ 30V
Current - Supply	11 mA
Operating Temperature	-55°C ~ 125°C (TA)

Features

Controlled Baseline
One Assembly/Test Site, One Fabrication Site
Extended Temperature Performance of -55°C to 125°C
Enhanced Diminishing Manufacturing Sources (DMS) Support
Enhanced Product Change Notification
Qualification Pedigree
Optimized for Off-line and DC-to-DC Converters
Low Start Up Current (<0.5 mA)
Trimmed Oscillator Discharge Current
Automatic Feed Forward Compensation
Pulse-by-Pulse Current Limiting
Enhanced Load Response Characteristics
Under-Voltage Lockout With Hysteresis
Double Pulse Suppression
High Current Totem Pole Output
Internally Trimmed Bandgap Reference
500 kHz Operation
Low RO Error Amp

Other Electronic Components In Stock

Part Number	Package
IM66D120A	TLGA-5
IM66D130A	TLGA-5
IMBG65R007M2H	TO263-7
IMBG65R015M2H	TO263-7
IMBG65R020M2H	TO263-7
CYPD727268LQXQ	VQFN-68
IMBG65R040M2H	TO263-7
IMBG65R050M2H	TO263-7
BTG7007A1EPW	TSDSO-14
CY8C4147AZES565	64-TQFP
CY8C4147AZSS595	64-TQFP
CY8C4147LDES573	48-QFN
CY8C4147LDSS583	48-QFN
CY8C4148AZAS558	100-LQFP
CY8C4148AZAS568	100-LQFP
CY8C4148AZAS595	64-TQFP
CY8C4148AZES545	64-LQFP
CY8C4148AZSS595	64-LQFP
CY8C4149AZAS555	64-LQFP
CY8C4149AZAS558	100-LQFP
CY8C4149AZES548	100-LQFP
CY8C4149AZSS555	64-LQFP
CY8C4149LDAS563	48-QFN
CY8C4149LDES543	48-QFN
CY8C4149LDES553	48-QFN
IAUCN08S7N013	PG-TDSON-8
IMW65R020M2H	PG-TO247-3
IMZA75R027M1H	PG-TO247-4-3
IMZA75R090M1H	PG-TO247-4-3
IPD30N10S3L34	PG-TO252-3-11

Frequently Asked Questions

Q: Are your products original?

A: Yes, all products are original, new original import is our purpose.

Q: Which Certificates do you have?

A: We are ISO 9001:2015 Certified Company and member of ERAI.

Q: Can you support small quantity order or sample? Is the sample free?

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

Q: How to ship my order? Is it safe?

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

Q: What about the lead time?

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
