LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

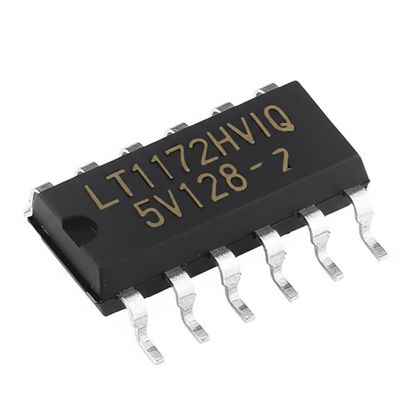

Gambar besar : LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	LT1172HVIQ

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	DDPAK-5
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	10000 buah per hari

Kontak

LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulator with 1.25A Output and 3V to 60V Input

Deskripsi

Nomor Bagian:	LT1172HVIQ	Arus keluaran::	1,25 A
Jumlah output::	1 output	Tegangan Input - Min::	3 V
Tegangan input - Max::	60 V	Diam Saat Ini::	6 mA
Menyoroti:	100kHz High Efficiency Switching Regulator , 1.25A Output Integrated Circuit Chip , 3V to 60V Input LT1172HVIQ

LT1172HVIQ Integrated Circuit Chip 100kHz High Efficiency Switching Regulators

The LT1172HVIQ is a monolithic high-power switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting, and "Cuk." The chip includes a high-current, high-efficiency switch on the die along with all oscillator, control, and protection circuitry.

Specifications

Function	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration	Positive or Negative
Topology	Buck, Boost, Cuk, Flyback, Forward Converter
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	1.244V
Voltage - Output (Max)	75V (Switch)
Current - Output	1.25A (Switch)
Frequency - Switching	100kHz

Features

Wide Input Voltage Range: 3V to 60V
Low Quiescent Current: 6mA
Internal 5A Switch
Shutdown Mode Draws Only 50µA Supply Current
Very Few External Parts Required
Self-Protected Against Overloads
Operates in Nearly All Switching Topologies
Flyback-Regulated Mode Has Fully Floating Outputs
Comes in Standard 5-Pin Packages
LT1172 Available in 8-Pin MiniDIP and Surface Mount Packages
Can Be Externally Synchronized

Applications

Logic Supply 5V at 10A
5V Logic to ±15V Op Amp Supply
Battery Upconverter
Power Inverter (+ to -) or (- to +)
Fully Floating Multiple Outputs

Other Supply Product Types

Part Number	Package
TPS259807ONRGER	24-VQFN
TPS259472LRPWR	10-VFQFN
TPS26632RGER	24-VFQFN
TPS259822LNRGER	24-VFQFN
TPS259822ONRGER	24-VFQFN
TPS259824ONRGER	24-VFQFN
TPS259827ONRGER	24-VFQFN
TPS259827LNRGER	24-VFQFN
TPS259520DSGR	8-WFDFN
TPS259531DSGR	8-WFDFN
TPS259630DDAR	8-PowerSOIC
LM74502HQDDFRQ1	SOT-23-8
TPS26630RGER	24-VFQFN
TPS26633RGER	24-VFQFN
STL26NM60N	8-PowerVDFN
STH410N4F7-6AG	H2PAK-6
STO67N60DM6	8-PowerSFN
STL210N4LF7AG	8-PowerVDFN
STO36N60M6	8-PowerSFN
SCTH100N65G2-7AG	H2PAK-7
STH30N65DM6-7AG	H2PAK-7
STL125N8F7AG	8-PowerVDFN
STB36N60M6	D2PAK
STHU47N60DM6AG	HU3PAK
STHU36N60DM6AG	HU3PAK
STB33N60DM2	D2PAK
STD80N450K6	TO-252
STO33N60M6	8-PowerSFN
STB45N60DM2AG	D2PAK
STB33N60DM6	D2PAK

Frequently Asked Questions

Q: Are your products original?

A: Yes, all products are original, new original import is our purpose.

Q: Which Certificates do you have?

A: We are ISO 9001:2015 Certified Company and member of ERAI.

Q: Can you support small quantity order or sample? Is the sample free?

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

Q: How to ship my order? Is it safe?

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

Q: What about the lead time?

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
