6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header
6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header 6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

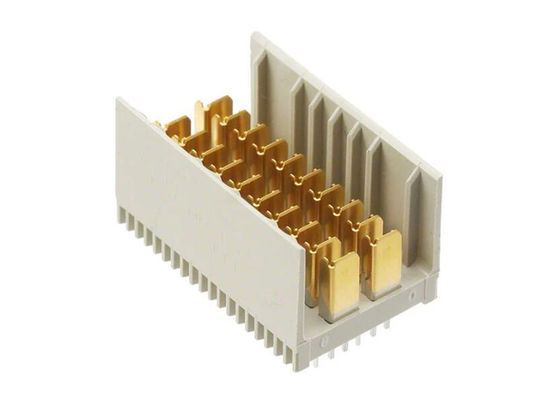

Gambar besar :  6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: 6469025-1
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: 40POS
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header

Deskripsi
Nomor Bagian: 6469025-1 Jumlah baris: 4 baris
Jumlah posisi: 40 Posisi Seri: Z-PACK HM-Zd
Melempar: 0,098" (2,50mm) Jarak baris ke baris: 1,5 mm [0,059 inci]
Menyoroti:

40 Position Backplane Connector

,

4 Row Backplane Connector

,

0.098" Pitch Connector

6469025-1 Connectors Z-PACK High Speed Backplane Connectors 40POS Hard Metric Connectors
Product Description
6469025-1 is a 40 Position, Z-PACK High Speed Backplane Connector featuring 4 Row, 10 Column configuration. This PCB Mount Header comes in Vertical orientation with Partially Shrouded design.
Specifications
Series Z-PACK HM-Zd
Connector Usage Backplane
Connector Type Header, Male Pins and Blades
Connector Style High Speed
Number of Positions 40
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 4
Number of Columns 10
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 40 Signal, 20 Ground
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 0.700A
Operating Temperature -65°C ~ 105°C
Voltage Rating 250V
Configuration Features
  • Card Slot Centerline: 20.3 mm [.8 in]
  • Pairs per Column: 2
  • Number of Signal Positions: 40
  • Number of Ground Positions: 20
  • Number of Pairs: 20
  • Number of Positions: 40
  • Number of Rows: 4
  • Number of Columns: 10
  • PCB Mount Orientation: Vertical
  • Guide Location: Unguided
Electrical Characteristics
  • Operating Voltage (VAC): 250
  • Signal Characteristics Data Rate (Gb/s): ≤12
Contact Features
  • Contact Type: Pin
  • Contact Base Material: Phosphor Bronze
  • Contact Mating Area Length: 5.3 mm [.21 in]
  • Contact Mating Area Plating Material: Gold (Au)
  • Contact Layout: Matrix
  • Contact Mating Area Plating Material Thickness: .76 µm [30 µin]
  • Contact Current Rating (Max) (A): .7
Product Photo
6469025-1 Z-PACK HM-Zd High Speed Backplane Connector 40 Position 4 Row 0.098" Pitch PCB Mount Header 0
