SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation
SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

Gambar besar :  SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: SJA1105QEL
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: LFBGA-159
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: TT
Menyediakan kemampuan: 10000 buah per hari
Kontak

SJA1105QEL 5-Port Automotive Gigabit Ethernet Switch IC with 10/100/1000 Mbit/s and 1.8/2.5/3.3 V Operation

Deskripsi
Nomor Bagian: SJA1105QEL Standar:: 10/100/1GBASE-TX
Jumlah transceiver:: 5 Pemancar Tingkat data:: 10 Mb/dtk, 100 Mb/dtk, 1 Gb/dtk
Jenis Antarmuka:: MII, RGMII, RMII, SGMII Tegangan suplai operasi:: 1,8 V, 2,5 V, 3,3 V
Menyoroti:

5-Port Ethernet IC

,

10/100/1000 Mbit/s Automotive Ethernet Switch

,

1.8/2.5/3.3 V Gigabit Ethernet Switch

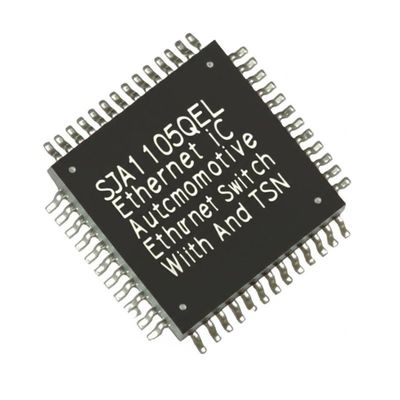

SJA1105QEL Ethernet IC 5-Port Automotive Gigabit Ethernet Switch With AVB And TSN
The SJA1105QEL is a safe and secure automotive gigabit Ethernet switch that extends the capabilities of the SJA1105QEL family with improved security features, extended interface options, and ISO 26262 ASIL-A compliance. This 5-port automotive Ethernet switch supports IEEE Audio Video Bridging (AVB) and Time-Sensitive Networking (TSN) standards, with each port individually configurable for 10/100/1000 Mbit/s operation.
Specifications
Protocol Ethernet
Function Switch
Interface SPI
Standards IEEE 802.3
Voltage - Supply 1.65V ~ 3.6V
Current - Supply 3.5mA
Operating Temperature -40°C ~ 125°C (TJ)
Package / Case 159-LFBGA
Supplier Device Package 159-LFBGA (12x12)
Grade Automotive
Key Features
  • 5-port store and forward architecture with individual port configuration
  • Independent I/O voltage domains with selectable operation voltages
  • Compact LFBGA159 (12 mm * 12 mm) package
  • Automotive Grade 2 operating temperature: -40°C to +105°C
  • ISO-26262, ASIL-A compliant
  • IEEE 802.3 compliant with 128 kB frame buffer
  • Support for IEEE 802.1Q VLANs (4096 VLANs supported)
  • Priority-based QoS handling with 8 configurable egress queues per port
  • Hardware support for IEEE 802.1AS timestamping and IEEE 802.1Qav AVB traffic shaping
  • IEEE 802.1X hardware support for enhanced security
  • Support for time-aware traffic (IEEE 802.1Qbv) and per-stream policing
  • Multiple interface options including MII/RMII/RGMII/SGMII
  • 25 MHz system clock input with reference clock output
