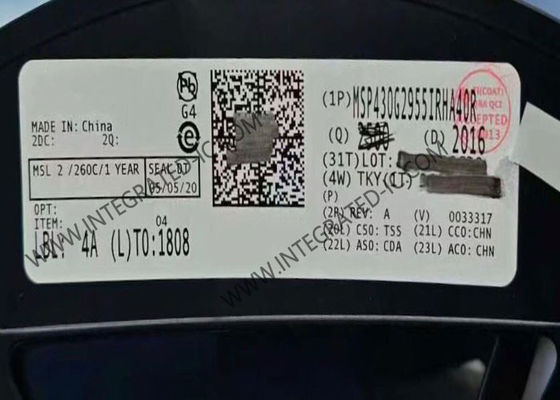

MSP430G2955IRHA40R 16-Bit Microcontroller MCU with 16MHz Clock and 56 kB Program Memory

MSP430G2955IRHA40R 16-Bit Microcontroller MCU with 16MHz Clock and 56 kB Program Memory
MSP430G2955IRHA40R 16-Bit Microcontroller MCU with 16MHz Clock and 56 kB Program Memory MSP430G2955IRHA40R 16-Bit Microcontroller MCU with 16MHz Clock and 56 kB Program Memory

Gambar besar :  MSP430G2955IRHA40R 16-Bit Microcontroller MCU with 16MHz Clock and 56 kB Program Memory

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: MSP430G2955IRHA40R
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: VQFN-40
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

MSP430G2955IRHA40R 16-Bit Microcontroller MCU with 16MHz Clock and 56 kB Program Memory

Deskripsi
Nomor Bagian: MSP430G2955IRHA40R Ukuran memori program: 56 kB
Frekuensi jam maksimum: 16 MHz Jumlah I/OS: 32 I/O
Lebar Bus Data: 16 bit Resolusi ADC: 10 bit
Menyoroti:

16-Bit Microcontroller MCU

,

16MHz Microcontroller MCU

,

56 kB Program Memory Microcontroller

MSP430G2955IRHA40R Microcontroller MCU 16-Bit Microcontroller IC 16MHz Mixed Signal MCU
Product Description
The MSP430G2955IRHA40R is a 16-bit mixed signal microcontroller featuring a powerful 16-bit RISC CPU, 16-bit registers, and constant generators for maximum code efficiency. Its digitally controlled oscillator (DCO) enables wake-up from low-power modes to active mode in less than 1 µs.
This ultra-low-power mixed signal microcontroller includes built-in 16-bit timers, up to 32 I/O touch-sense-enabled pins, a versatile analog comparator, and built-in communication capability via universal serial communication interface.
Specifications
Core Processor MSP430 CPU16
Core Size 16-Bit
Speed 16MHz
Connectivity I2C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, WDT
Number of I/O 32
Program Memory Size 56KB (56K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 12x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 40-VQFN (6x6)
Package / Case 40-VFQFN Exposed Pad
Key Features
  • Low Supply-Voltage Range: 1.8 V to 3.6 V
  • Ultra-Low Power Consumption
    • Active Mode: 250 µA at 1 MHz, 2.2 V
    • Standby Mode: 0.7 µA
    • Off Mode (RAM Retention): 0.1 µA
  • Five Power-Saving Modes
  • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
  • Basic Clock Module Configurations
  • Two 16-Bit Timer_A With Three Capture/Compare Registers
  • One 16-Bit Timer_B With Three Capture/Compare Registers
  • Up to 32 Touch-Sense-Enabled I/O Pins
  • Universal Serial Communication Interface (USCI)
  • On-Chip Comparator for Analog Signal Compare Function
  • 10-Bit 200-ksps Analog-to-Digital (A/D) Converter
  • Brownout Detector
  • Serial Onboard Programming
  • Bootstrap Loader
  • On-Chip Emulation Logic
