IPD60R600P7 Integrated Circuit Chip N-Channel 600V CoolMOS™ P7 Power MOSFET Transistors

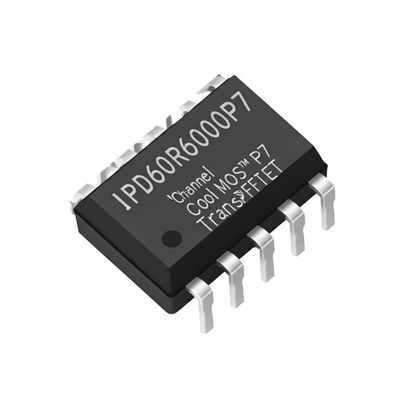

Gambar besar : IPD60R600P7 Integrated Circuit Chip N-Channel 600V CoolMOS™ P7 Power MOSFET Transistors

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	IPD60R600P7

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	PG-TO252-3
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

IPD60R600P7 Integrated Circuit Chip N-Channel 600V CoolMOS™ P7 Power MOSFET Transistors

Deskripsi

Nomor Bagian:	IPD60R600P7	Jenis FET:	Saluran-N
Tiriskan ke Tegangan Sumber (Vdss):	600 v	Arus - Pengurasan Berkelanjutan (Id) @ 25°C:	6A (Tc)
Tegangan drive (MAX RDS ON, MIN RDS ON):	10v	Rds Aktif (Maks) @ Id, Vgs:	600mOhm @ 1,7A, 10V
Menyoroti:	600V Power MOSFET , ESD Robustness >2kV MOSFET Transistor , N-Channel Integrated Circuit Chip

IPD60R600P7 Integrated Circuit Chip N-Channel 600V CoolMOS™ P7 Power MOSFET Transistors

Product Description

The IPD60R600P7 600V CoolMOS™ P7 superjunction (SJ) MOSFET is the successor to the 600V CoolMOS™ P6 series. It balances high efficiency with ease-of-use in the design process. Featuring best-in-class R_onxA and inherently low gate charge (Q_G) of the CoolMOS™ 7th generation platform, it ensures superior efficiency.

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (V_dss)	600 V
Current - Continuous Drain (I_d) @ 25°C	6A (T_c)
Drive Voltage (Max R_ds On, Min R_ds On)	10V
R_ds On (Max) @ I_d, V_gs	600mΩ @ 1.7A, 10V
V_gs(th) (Max) @ I_d	4V @ 80µA
Gate Charge (Q_g) (Max) @ V_gs	9 nC @ 10 V
V_gs (Max)	±20V
Input Capacitance (C_iss) (Max) @ V_ds	363 pF @ 400 V
Power Dissipation (Max)	30W (T_c)
Operating Temperature	-40°C ~ 150°C (T_J)

Features

Suitable for hard and soft switching (PFC and LLC) due to outstanding commutation ruggedness
Significant reduction of switching and conduction losses
Excellent ESD robustness >2kV (HBM) for all products
Better R_ps(on)/package products compared to competition enabled by low R_on*A (below 1Ω*mm²)

Benefits

Ease of use and fast design-in through low ringing tendency and usage across PFC and PWM stages
Simplified thermal management due to low switching and conduction losses
Increased power density solutions enabled by smaller footprint and higher manufacturing quality with >2kV ESD protection
Suitable for a wide variety of applications and power ranges

Applications

PFC stages, hard switching PWM stages, and resonant switching stages for PC Silverbox, Adapter, LCD & PDP TV, Lighting, Server, Telecom, and UPS
