NGTB40N120FL2WG IGBT Transistor 1200V 80A 535W with Trench Field Stop Technology for Solar Inverters and UPS

NGTB40N120FL2WG IGBT Transistor 1200V 80A 535W with Trench Field Stop Technology for Solar Inverters and UPS
NGTB40N120FL2WG IGBT Transistor 1200V 80A 535W with Trench Field Stop Technology for Solar Inverters and UPS

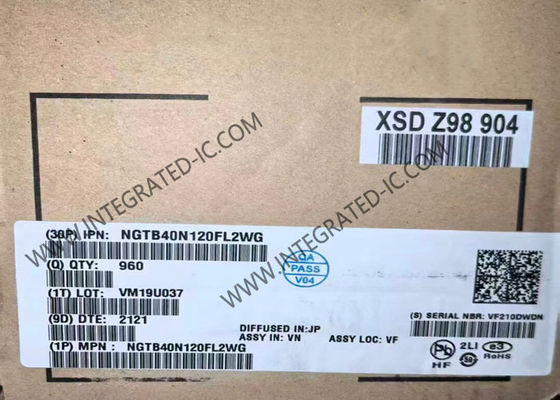

Gambar besar :  NGTB40N120FL2WG IGBT Transistor 1200V 80A 535W with Trench Field Stop Technology for Solar Inverters and UPS

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: NGTB40N120FL2WG
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: KE-247
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000 buah per hari
Kontak

NGTB40N120FL2WG IGBT Transistor 1200V 80A 535W with Trench Field Stop Technology for Solar Inverters and UPS

Deskripsi
Nomor Bagian: NGTB40N120FL2WG Voltan kolektor-emitter VCEO Max:: 1,2 kV
Tegangan Saturasi Kolektor-Emitor:: 2 V Tegangan Emitor Gerbang Maksimum:: - 20 V, 20 V
Arus Kolektor Kontinyu pada 25 C:: 80 a Pd - Disipasi Daya:: 535 watt
Menyoroti:

1200V IGBT Transistor

,

80A Integrated Circuit Chip

,

535W Insulated Gate Bipolar Transistor

NGTB40N120FL2WG Integrated Circuit Chip 1200V 80A 535W IGBT Trench Field Stop Transistors
Product Description

The NGTB40N120FL2WG Insulated Gate Bipolar Transistor (IGBT) features a robust and cost-effective Field Stop II Trench construction, delivering superior performance in demanding switching applications. This device combines low on-state voltage with minimal switching loss, making it ideal for UPS and solar applications. Includes a soft and fast co-packaged free-wheeling diode with low forward voltage.

Specifications
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 80 A
Current - Collector Pulsed (Icm) 200 A
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 40A
Power - Max 535 W
Switching Energy 3.4mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 313 nC
Td (on/off) @ 25°C 116ns/286ns
Test Condition 600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr) 240 ns
Operating Temperature -55°C ~ 175°C (TJ)
Key Features
  • Extremely Efficient Trench with Field Stop Technology
  • TJmax = 175°C
  • Soft Fast Reverse Recovery Diode
  • Optimized for High Speed Switching
  • 10 s Short Circuit Capability
  • Pb-Free Device
Applications
  • Solar Inverter
  • Uninterruptible Power Supplies (UPS)
  • Welding Equipment
