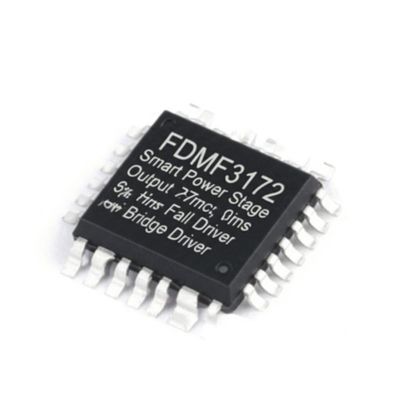

FDMF3172 Smart Power Stage Module with 55A Output Current 9ns Rise Time 6ns Fall Time Half Bridge Driver

FDMF3172 Smart Power Stage Module with 55A Output Current 9ns Rise Time 6ns Fall Time Half Bridge Driver
FDMF3172 Smart Power Stage Module with 55A Output Current 9ns Rise Time 6ns Fall Time Half Bridge Driver FDMF3172 Smart Power Stage Module with 55A Output Current 9ns Rise Time 6ns Fall Time Half Bridge Driver

Gambar besar :  FDMF3172 Smart Power Stage Module with 55A Output Current 9ns Rise Time 6ns Fall Time Half Bridge Driver

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: FDMF3172
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: PQFN-39
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

FDMF3172 Smart Power Stage Module with 55A Output Current 9ns Rise Time 6ns Fall Time Half Bridge Driver

Deskripsi
Nomor Bagian: FDMF3172 Arus keluaran: 55 A
Waktu Bangun: 9 n Waktu Musim Gugur: 6 n
Tegangan output: 12 v Suhu Operasional: -40°C ~ 125°C (TJ)
Menyoroti:

55A Output Current Smart Power Stage Module

,

9ns Rise Time Half Bridge Driver

,

6ns Fall Time Integrated Circuit Chip

FDMF3172 Integrated Circuit Chip Smart Power Stage Modules PQFN39 Half Bridge Driver
Product Description
FDMF3172 is Smart Power Stage (SPS) solutions with fully optimized, ultra-compact, integrated MOSFETs with advanced driver IC current and temperature sensors, for high-current, high frequency, and synchronous buck DC-DC converters.
The integration of Power MOSFETs with a driver IC enables high accuracy module-level current and thermal monitoring. The FDMF3172 provides an output signal (IMON), which reports real-time module current. The IMON signal can replace inductor DCR current sense or resistor sense methods. It also features accurate thermal monitoring (TMON) that provides a 0.8V output at 25°C with an 8 mV/°C slope.
Specifications
Output Configuration Half Bridge (2)
Applications General Purpose
Interface Logic, PWM
Load Type Inductive, Capacitive
Technology Power MOSFET
Current - Output / Channel 55A
Current - Peak Output 70A
Voltage - Supply 4.5V ~ 5.5V
Voltage - Load 4.5V ~ 16V
Operating Temperature -40°C ~ 125°C (TJ)
Features Bootstrap Circuit
Fault Protection Current Limiting, Over Temperature
Mounting Type Surface Mount
Package / Case 39-PowerVFQFN
Supplier Device Package 39-PQFN (5x6)
Key Features
  • Up to 55 A Instantaneous Peak Current Handling Capability
  • High-Performance, Universal Footprint, Copper-Clip 5 mm x 6 mm PQFN Package
  • ON Semiconductor's PowerTrench® MOSFETs for Clean Voltage Waveforms and Reduced Ringing
  • 30 V / 25 V DC Breakdown Voltage MOSFETs for Higher Long-Term Reliability
  • Optimized FET Pair for Highest Efficiency at 10% ~ 15% Duty Cycle
  • Optimized for Switching Frequencies up to 1 MHz
  • Integrated Current Monitoring (IMON)
  • Integrated Temperature Monitor (TMON)
  • Catastrophic Fault Detection Features
  • Thermal Flag (OTP) for Over-Temperature Condition
  • Over-Current Protection FAULT (OCP)
  • High-Side Short Detect FAULT
  • Under-Voltage Lockout (UVLO) on VCC and PVCC
Applications
CPU and Memory Voltage Regulators Compliant with VR13 Purley Systems
High-Current Multiphase Voltage Regulators
Graphics Processing Unit (GPU) Cards
Server, Storage, Telecom
