CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

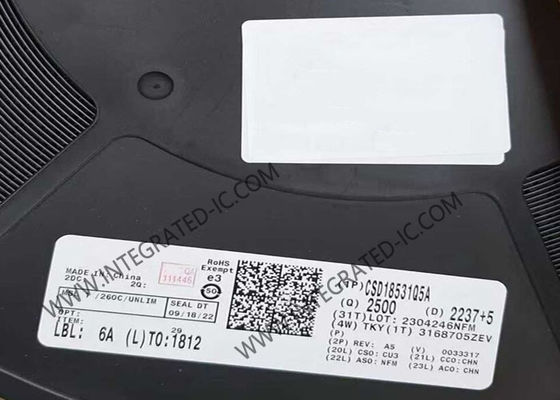

Gambar besar : CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	CSD18531Q5A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	VSONP-8
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

CSD18531Q5A 60V 100A 4.6 mOhms N-Channel NexFET Power MOSFET Integrated Circuit Chip

Deskripsi

Nomor Bagian:	CSD18531Q5A	VDS - Tegangan Breakdown Drain-Source:	60 V
Id - Arus Tiriskan Terus Menerus:	100 A	Qg - Biaya Gerbang:	36 nC
Rds On - Resistensi Drain-Source:	4.6 Mohms	PD - Dissipasi Daya:	156 W
Menyoroti:	60V Power MOSFET , 100A NexFET , 4.6 mOhms Integrated Circuit Chip

CSD18531Q5A Integrated Circuit Chip 60V N-Channel NexFET Power MOSFET Transistors

CSD18531Q5A Integrated Circuit Chip 60V N-Channel NexFET Power MOSFET Transistors

CSD18531Q5A is a 60V, 3.5mΩ, 5mm * 6mm NexFET™ power MOSFET transistor designed to minimize losses in power conversion applications.

Specifications

Series	NexFET™
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	19A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.6mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3840 pF @ 30 V
Power Dissipation (Max)	3.1W (Ta), 156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (5x6)
Package / Case	8-PowerTDFN

Features

Ultra-Low Qg and Qgd
Low-Thermal Resistance
Avalanche Rated
Logic Level
Lead-Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5-mm * 6-mm Plastic Package

Applications

DC-DC Conversion
Secondary Side Synchronous Rectifier
Battery Motor Control
