ISO7742DWR High-Speed Quad-Channel Digital Isolator with 5000 Vrms Isolation and 100 Mb/s Data Rate

ISO7742DWR High-Speed Quad-Channel Digital Isolator with 5000 Vrms Isolation and 100 Mb/s Data Rate
ISO7742DWR High-Speed Quad-Channel Digital Isolator with 5000 Vrms Isolation and 100 Mb/s Data Rate

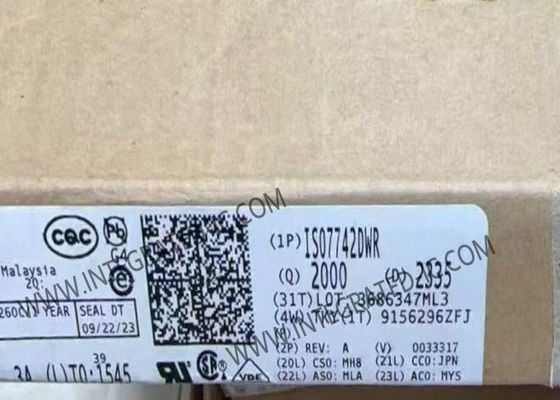

Gambar besar :  ISO7742DWR High-Speed Quad-Channel Digital Isolator with 5000 Vrms Isolation and 100 Mb/s Data Rate

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: ISO7742DWR
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: SOIC-16
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000 buah per hari
Kontak

ISO7742DWR High-Speed Quad-Channel Digital Isolator with 5000 Vrms Isolation and 100 Mb/s Data Rate

Deskripsi
Nomor Bagian: ISO7742DWR Jumlah Saluran:: 4 saluran
Tingkat data:: 100 Mb/dtk Tegangan isolasi:: 5000 Vrm
Tegangan suplai - maks:: 5.5 v Tegangan suplai - min:: 2,25 V
Menyoroti:

5000 Vrms Isolation Digital Isolator

,

100 Mb/s Data Rate Digital Isolator

,

High-Speed Digital Isolator

ISO7742DWR Integrated Circuit Chip High-Speed Quad-Channel Digital Isolators
Product Description

The ISO7742DWR is a high-performance, quad-channel digital isolator with 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation ratings per UL 1577. This family includes devices with reinforced insulation ratings according to VDE, CSA, TUV and CQC. The ISO7741B device is designed for applications requiring basic insulation ratings only.

Specifications
Parameter Value
Number of Channels 4
Inputs - Side 1/Side 2 2/2
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 85kV/µs
Data Rate 100Mbps
Propagation Delay tpLH / tpHL (Max) 16ns, 16ns
Pulse Width Distortion (Max) 4.9ns
Rise / Fall Time (Typ) 2.4ns, 2.4ns
Voltage - Supply 2.25V ~ 5.5V
Operating Temperature -55°C ~ 125°C
Key Features
  • 100Mbps data rate
  • Robust isolation barrier:
    • >30-year projected lifetime at 1500VRMS working voltage
    • Up to 5000VRMS isolation rating
    • Up to 12.8kV surge capability
    • ±100kV/μs typical CMTI
  • Wide supply range: 2.25V to 5.5V
  • 2.25V to 5.5V level translation
  • Default output high (ISO774x) and low (ISO774xF) options
  • Wide temperature range: -55°C to 125°C
  • Low power consumption: typical 1.5mA per channel at 1Mbps
  • Low propagation delay: 10.7ns typical (5V Supplies)
  • Robust electromagnetic compatibility (EMC):
    • System-level ESD, EFT, and surge immunity
    • ±8kV IEC 61000-4-2 contact discharge protection across isolation barrier
    • Low emissions
  • Wide-SOIC (DW-16) and QSOP (DBQ-16) package options
  • Automotive version available: ISO774x-Q1
  • Safety-related certifications:
    • DIN EN IEC 60747-17 (VDE 0884-17)
    • UL 1577 component recognition program
    • IEC 61010-1, IEC 62368-1, IEC 60601-1, and GB 4943.1 certifications
Applications
  • Industrial automation
  • Motor control
  • Power supplies
  • Solar inverters
  • Medical equipment
