ADA4870ARRZ High Speed Current Feedback Amplifier Integrated Circuit Chip with 1A Output Current 2500V/μs Slew Rate and 40V Supply SOIC20

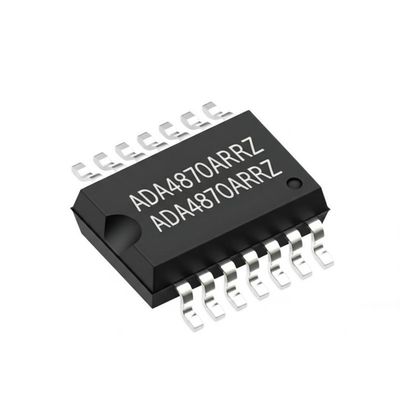

Gambar besar : ADA4870ARRZ High Speed Current Feedback Amplifier Integrated Circuit Chip with 1A Output Current 2500V/μs Slew Rate and 40V Supply SOIC20

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	ADA4870ARRZ

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	SOIC-20
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

ADA4870ARRZ High Speed Current Feedback Amplifier Integrated Circuit Chip with 1A Output Current 2500V/μs Slew Rate and 40V Supply SOIC20

Deskripsi

Nomor Bagian:	ADA4870ARRZ	SR - Tingkat Perubahan:	2,5 kV/kita
CMRR - Rasio Penolakan Mode Umum:	58dB	Keluaran Arus per Saluran:	1 a
Ib - Input Bias Saat Ini:	23 uA	Arus pasokan operasi:	32,5 mA
Menyoroti:	1A Output Current Current Feedback Amplifier , 2500V/μs Slew Rate Integrated Circuit Chip , 40V Supply SOIC20

ADA4870ARRZ Integrated Circuit Chip High Speed Current Feedback Amplifier SOIC20

Product Description

The ADA4870ARRZ is a unity gain stable, high speed current feedback amplifier capable of delivering 1 A of output current and 2500 V/μs slew rate from a 40 V supply. This amplifier is ideal for driving high voltage power FETs, piezo transducers, PIN diodes, CCD panels, and other demanding applications requiring high speed operation at high supply voltage and output current.

Specifications

Amplifier Type	Current Feedback
Number of Circuits	1
Slew Rate	2500V/µs
-3db Bandwidth	60 MHz
Current - Input Bias	9 µA
Voltage - Input Offset	1 mV
Current - Supply	32.5mA
Voltage - Supply Span (Min)	10 V
Voltage - Supply Span (Max)	40 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	20-PowerSOIC (0.433", 11.00mm Width)
Supplier Device Package	20-Power SOIC EP

Key Features

Ideal for driving high capacitive or low resistive loads
Wide supply range: 10 V to 40 V
High output current drive: 1A
Wide output voltage swing: 37 V swing with 40 V supply
High slew rate: 2500 V/μs
High bandwidth: 52 MHz large signal, 70 MHz small signal
Low noise: 2.1 nV/√Hz
Quiescent current: 32.5 mA
Power down: 0.75 mA
Short-circuit protection and flag
Thermal protection

Applications

Envelope tracking
Power FET driver
Ultrasound
Piezo drivers
PIN diode drivers
Waveform generation
Automated test equipment (ATE)
CCD panel drivers
Composite amplifiers
