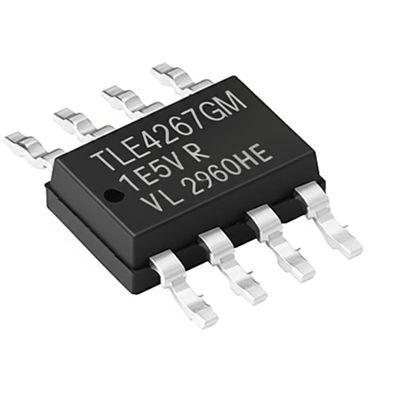

TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator with 400 mA Output Current and 40V Input Voltage

TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator with 400 mA Output Current and 40V Input Voltage
TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator with 400 mA Output Current and 40V Input Voltage TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator with 400 mA Output Current and 40V Input Voltage

Gambar besar :  TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator with 400 mA Output Current and 40V Input Voltage

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: TLE4267GM
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: DSO-14-30
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator with 400 mA Output Current and 40V Input Voltage

Deskripsi
Nomor Bagian: TLE4267GM Tegangan keluaran:: 5 v
Arus keluaran:: 400 mA Jumlah output:: 1 output
Tegangan Input - Min:: 5.5 v Tegangan input - Max:: 40 V
Menyoroti:

5V Low Drop Voltage Regulator

,

400 mA Output Current Integrated Circuit Chip

,

40V Input Voltage TLE4267GM

TLE4267GM Integrated Circuit Chip 5V Low Drop Voltage Regulator For Automotive Applications
Product Description
TLE4267GM is a 5-V low drop voltage regulator for automotive applications in the PG-TO220-7 or PG-DSO-14-30 package. It supplies an output current of > 400 mA. The IC is short-circuit-proof and has an overtemperature protection circuit.
Specifications
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 0.6V @ 400mA
Current - Output 400mA
Current - Quiescent (Iq) 4 mA
Current - Supply (Max) 80 mA
PSRR 54dB (100Hz)
Control Features Inhibit, Reset
Protection Features Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage
Operating Temperature -40°C ~ 150°C
Grade Automotive
Features
  • Output voltage tolerance ≤ ±2%
  • 400 mA output current capability
  • Low-drop voltage
  • Very low standby current consumption
  • Input voltage up to 40 V
  • Overvoltage protection up to 60 V
  • ESD protection up to 2000 V
  • Adjustable reset time
  • On/off logic
  • Overtemperature protection
  • Reverse polarity protection
Benefits
Robust protection features including integrated overvoltage detection.
Applications
DIN rail power supply solutions.
