IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

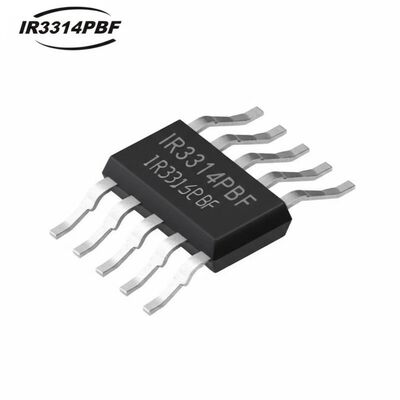

Gambar besar : IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	IR3314PBF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	KE-220-5
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

IR3314PBF Integrated Circuit Chip High Side Switch with 18A Programmable Current Sense 6V to 32V and 2W Power Dissipation

Deskripsi

Nomor Bagian:	IR3314PBF	Arus keluaran:	18 A
Tegangan Pasokan:	6V ~ 32V	PD - Dissipasi Daya:	2 W
Jumlah output:	1 output	Suhu Operasional (Min):	-40 ℃
Menyoroti:	18A Integrated Circuit Chip , 6V to 32V High Side Switch , 2W Power Dissipation Programmable Current Sense

IR3314PBF Integrated Circuit Chip 18A Programmable Current Sense High Side Switch

Product Description

The IR3314PBF is a fully protected programmable current sense high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin exceeds the specified threshold, the output power Mosfet activates. When Vcc - Vin falls below the specified Vil threshold, the output Mosfet deactivates.

Specifications

Product	Half-Bridge Drivers
Type	High-Side
Mounting Style	Through Hole
Package / Case	TO-220-5
Number of Outputs	1 Output
Output Current	18 A
Supply Voltage - Min	6 V
Supply Voltage - Max	32 V
Rise Time	8 us
Fall Time	20 us
Minimum Operating Temperature	-40℃
Pd - Power Dissipation	2 W

Key Features

Load current feedback
Programmable over current shutdown
Active clamp
ESD protection
Input referenced to Vcc
Over temperature shutdown
Reverse battery protection
Lead-Free
