PCAL6416AHF Integrated Circuit Chip 16-Bit I/O Expander with 400 kHz Clock Frequency and 25 mA Output Current

PCAL6416AHF Integrated Circuit Chip 16-Bit I/O Expander with 400 kHz Clock Frequency and 25 mA Output Current
PCAL6416AHF Integrated Circuit Chip 16-Bit I/O Expander with 400 kHz Clock Frequency and 25 mA Output Current PCAL6416AHF Integrated Circuit Chip 16-Bit I/O Expander with 400 kHz Clock Frequency and 25 mA Output Current

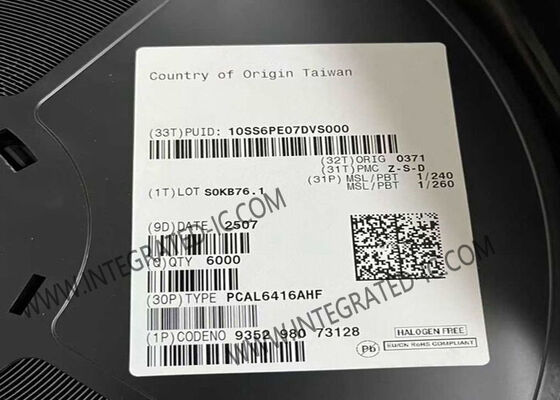

Gambar besar :  PCAL6416AHF Integrated Circuit Chip 16-Bit I/O Expander with 400 kHz Clock Frequency and 25 mA Output Current

Detail produk:
Tempat asal: Cn
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: PCAL6416AHF
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: HWQFN-24
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

PCAL6416AHF Integrated Circuit Chip 16-Bit I/O Expander with 400 kHz Clock Frequency and 25 mA Output Current

Deskripsi
Nomor Bagian: PCAL6416AHF Jumlah I/OS: 16 I/O
Frekuensi jam maksimum: 400 kHz Arus keluaran: 25 ma
Tipe Antarmuka: I2C, Serial, SMBus Suhu Operasional: -40 ° C ~ 85 ° C.
Menyoroti:

16-Bit Integrated Circuit Chip

,

400 kHz Clock Frequency I/O Expander

,

25 mA Output Current PCAL6416AHF

PCAL6416AHF Integrated Circuit Chip 16-Bit Level Translating I/O Expander HWQFN24
Product Description
PCAL6416AHF is a 16-bit general-purpose I/O expander that provides remote I/O expansion for most microcontroller families via the I2C-bus interface.
PCAL6416AHF has built-in level shifting feature that makes these devices extremely flexible in mixed signal environments where communication between incompatible I/O voltages is required. Its wide VDD range of 1.65 V to 5.5 V on the dual power rail allows seamless communications with next-generation low voltage microprocessors and microcontrollers on the interface side (SDA/SCL) and peripherals at a higher voltage on the port side.
Specifications
Number of I/O 16
Interface I2C, SMBus
Interrupt Output Yes
Features POR
Output Type Open Drain, Push-Pull
Current - Output Source/Sink 10mA, 25mA
Clock Frequency 400 kHz
Voltage - Supply 1.65V ~ 5.5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-HWQFN (4x4)
Key Features
  • Operating power supply voltage range of 1.65 V to 5.5 V
  • Allows bidirectional voltage-level translation and GPIO expansion between:
    • 1.8 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P
    • 2.5 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P
    • 3.3 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P
    • 5 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P
  • Low standby current consumption:
    • 1.5 μA typical at 5 V VDD
    • 1.0 μA typical at 3.3 V VDD
  • Schmitt trigger action allows slow input transition and better switching noise immunity at the SCL and SDA inputs
  • 5 V tolerant I/O ports
  • Active LOW reset input (RESET)
  • Open-drain active LOW interrupt output (INT)
  • 400 kHz Fast-mode I2C-bus
  • Internal power-on reset
  • Power-up with all channels configured as inputs
  • No glitch on power-up
  • Noise filter on SCL/SDA inputs
  • Latched outputs with 25 mA drive maximum capability for directly driving LEDs
