TAS5707PHPR 20W Open-Loop Stereo Class-D Audio Amplifier IC HTQFP48 with 8V-24V Supply

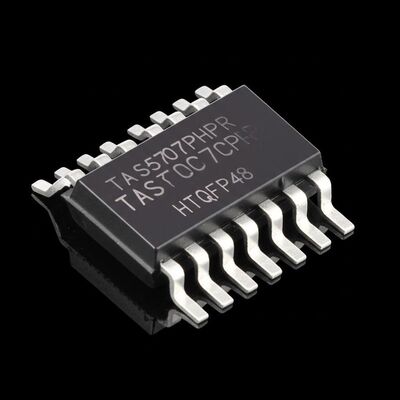

Gambar besar : TAS5707PHPR 20W Open-Loop Stereo Class-D Audio Amplifier IC HTQFP48 with 8V-24V Supply

Detail produk:

Tempat asal:	Cn
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	TAS5707PHPR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	HTTPFP-48
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

TAS5707PHPR 20W Open-Loop Stereo Class-D Audio Amplifier IC HTQFP48 with 8V-24V Supply

Deskripsi

Nomor Bagian:	TAS5707PHPR	Jenis Keluaran:	Stereo 2 Saluran
Kelas:	Kelas-AB	Daya Keluaran:	20.6 w
THD ditambah Kebisingan:	0,06%	Audio - Beban Impedansi:	8 Ohm
Menyoroti:	20W Audio Amplifier , HTQFP48 Integrated Circuit Chip , 8V-24V Class-D Amplifier

TAS5707PHPR Integrated Circuit Chip 20W Open-Loop Stereo Class-D Audio Amplifier HTQFP48

Product Description

The TAS5707PHPR is a 20-W, efficient digital-audio power amplifier designed for driving stereo bridge-tied speakers. It features one serial data input for processing up to two discrete audio channels, enabling seamless integration with most digital audio processors and MPEG decoders. The amplifier accepts a wide range of input data and data rates, with a fully programmable data path that routes channels to internal speaker drivers.

Specifications

Type	Class D
Output Type	2-Channel (Stereo)
Max Output Power x Channels @ Load	20.6W x 2 @ 8Ohm
Voltage - Supply	8V ~ 24V
Features	Depop, Digital Inputs, I2C, I2S, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TA)
Supplier Device Package	48-HTQFP (7x7)
Package / Case	48-PowerTQFP

Key Features

Audio Input/Output: 20-W into an 8-Ω load from an 18-V supply
Wide PVDD range, from 8 V to 26 V
Efficient Class-D operation eliminates need for heatsinks
Requires only 3.3 V and PVDD
One serial audio input (two audio channels)
Supports 8-kHz to 48-kHz sample rate (LJ/RJ/I2S)
Independent channel volume controls with 24 dB to mute
Soft mute (50% duty cycle)
Programmable dynamic range control
14 programmable biquads for speaker EQ and other audio processing features
Programmable coefficients for DRC filters
DC blocking filters
Serial control interface operational without MCLK
Factory-trimmed internal oscillator for automatic rate detection
Surface mount, 48-PIN, 7-mm × 7-mm HTQFP package
Thermal and short-circuit protection

Applications

Television
iPod™ Dock
Sound Bar
