BQ24192RGER Integrated Circuit Chip 4.5A Single Cell Li-Ion Charger with USB/Adapter Input

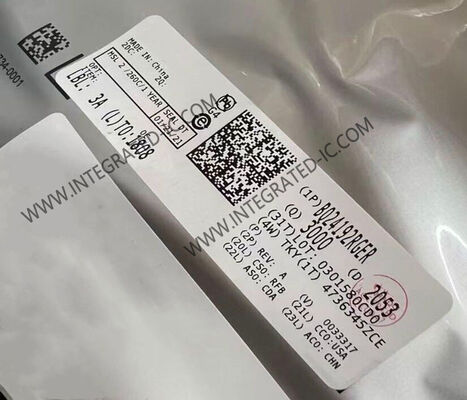

Gambar besar : BQ24192RGER Integrated Circuit Chip 4.5A Single Cell Li-Ion Charger with USB/Adapter Input

Detail produk:

Tempat asal:	CN
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	BQ24192RGER

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	VQFN-24
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	TT
Menyediakan kemampuan:	10.000 Potongan per Hari

Kontak

BQ24192RGER Integrated Circuit Chip 4.5A Single Cell Li-Ion Charger with USB/Adapter Input

Deskripsi

Nomor bagian:	BQ24192RGER	Arus keluaran::	4,5 A
Tegangan suplai operasi::	3,9 V hingga 17 V	Suhu operasi maksimum::	+ 85 C
Suhu operasi minimum::	- 40 C	Berat unit::	54.600mg
Menyoroti:	4.5A Output Current Integrated Circuit Chip , Single Cell Li-Ion Charger IC Chip , USB/Adapter Input Battery Charger IC

BQ24192RGER Integrated Circuit Chip 4.5A Single Cell USB/Adapter Charger

The BQ24192RGER is a highly-integrated switch-mode battery charge management and system power path management device designed for single cell Li-Ion and Li-polymer batteries in a wide range of tablet and other portable devices.

Specifications

Battery Chemistry	Lithium Ion/Polymer
Number of Cells	1
Current - Charging	Constant - Programmable
Fault Protection	Over Current, Over Temperature, Over Voltage
Charge Current - Max	4.5A
Battery Pack Voltage	4.2V
Voltage - Supply (Max)	17V
Interface	I2C
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

High Efficiency 4.5-A Switch Mode Charger
92% Charge Efficiency at 2 A, 90% at 4 A
Accelerate Charge Time by Battery Path Impedance Compensation
Compatible with MaxLife Technology for Faster Charging When Used in Conjunction With bq27531
Highest Battery Discharge Efficiency with 12-mΩ Battery Discharge MOSFET up to 9-A Discharge Current
Single Input USB-compliant/Adapter Charger
USB Host or Charging Port D+/D- Detection
Compatible to USB Battery Charger Spec 1.2
Input Voltage and Current Limit Supports USB2.0 and USB3.0
Input Current Limit: 100 mA, 150 mA, 500 mA, 900 mA, 1.2 A, 1.5 A, 2 A and 3 A
3.9-V to 17-V Input Operating Voltage Range
Support All Kinds of Adapter with Input Voltage DPM Regulation
USB OTG 5 V at 1.3-A Synchronous Boost Converter Operation
93% 5-V Boost Efficiency at 1 A
Narrow VDC (NVDC) Power Path Management
Instant-on Works with No Battery or Deeply Discharged Battery
Ideal Diode Operation in Battery Supplement Mode
1.5-MHz Switching Frequency for Low Profile Inductor
Autonomous Battery Charging with or without Host Management
Battery Charge Enable
Battery Charge Preconditioning
Charge Termination and Recharge
High Accuracy (0°C to 125°C)
±0.5% Charge Voltage Regulation
±7% Charge Current Regulation
±7.5% Input Current Regulation
±2% Output Regulation in Boost Mode
High Integration with Power Path Management
Synchronous Switching MOSFETs
Integrated Current Sensing
Bootstrap Diode
Internal Loop Compensation
Comprehensive Safety Features
Battery Temperature Sensing and Charging Safety Timer
Thermal Regulation and Thermal Shutdown
Input System Over-Voltage Protection
MOSFET Over-Current Protection
Charge Status Outputs for LED or Host Processor
Low Battery Leakage Current and Support Shipping Mode
4.00 mm × 4.00 mm VQFN-24 Package

Applications

Tablet PC and Smart Phone, Portable Audio Speaker, Portable Media Players, Internet Devices
