ICE2QR2280G 800V Avalanche Rugged Power Management IC with Quasi-Resonant Operation and 52kHz Switching Frequency

ICE2QR2280G 800V Avalanche Rugged Power Management IC with Quasi-Resonant Operation and 52kHz Switching Frequency
ICE2QR2280G 800V Avalanche Rugged Power Management IC with Quasi-Resonant Operation and 52kHz Switching Frequency ICE2QR2280G 800V Avalanche Rugged Power Management IC with Quasi-Resonant Operation and 52kHz Switching Frequency

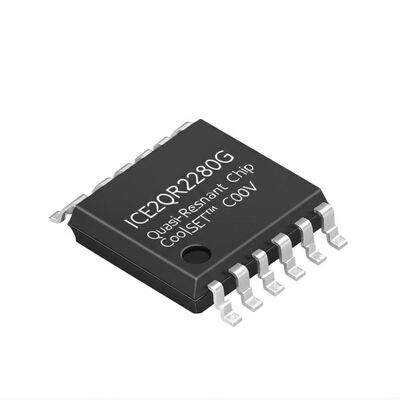

Gambar besar :  ICE2QR2280G 800V Avalanche Rugged Power Management IC with Quasi-Resonant Operation and 52kHz Switching Frequency

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: ICE2QR2280G
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: JADI-12
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10.000 Potongan per Hari
Kontak

ICE2QR2280G 800V Avalanche Rugged Power Management IC with Quasi-Resonant Operation and 52kHz Switching Frequency

Deskripsi
Nomor bagian: ICE2QR2280G Beralih Frekuensi:: 52 kHz
Arus pasokan operasi:: 1.5 Ma Suhu operasi minimum:: - 40 C
Suhu operasi maksimum:: + 150 C Berat unit:: 209 mg
Menyoroti:

800V Avalanche Rugged Power Management IC

,

Quasi-Resonant Operation CoolSET IC

,

52kHz Switching Frequency Integrated Circuit Chip

ICE2QR2280G Integrated Circuit Chip Quasi-Resonant 800V CoolSET™ Integrated Power Management IC
Integrated power management IC with 800V avalanche rugged CoolMOS™, startup cell and QR current mode flyback PWM controller. The quasi QR CoolSET™ series continues to deliver design agility and miniaturization. The digital frequency reduction feature ensures very stable operation with decreasing load change, and the fold-back correction maintains maximum power limits within tolerance desired by SMPS designers.
Specifications
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 800V
Topology Flyback
Voltage - Start Up 18 V
Voltage - Supply (Vcc/Vdd) 10.5V ~ 27V
Duty Cycle 50%
Frequency - Switching 52kHz
Power (Watts) 53 W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Operating Temperature -40°C ~ 150°C (TJ)
Key Features
  • 800V avalanche rugged CoolMOS™ with built-in startup cell
  • Quasi resonant operation till very low load
  • Active burst mode operation for low standby input power (< 0.1W)
  • Digital frequency reduction with decreasing load for reduced switching loss
  • Built-in digital soft-start
  • Foldback point correction, cycle-by-cycle peak current limitation and maximum on time limitation
  • Auto restart mode for VCC over-voltage protection, undervoltage protection, over-load protection and overtemperature protection
  • Latch-off mode for adjustable output over-voltage protection and transformer short-winding protection
Product Highlights
  • Active Burst Mode to reach the lowest standby power requirement <100 mW @ no load
  • Quasi resonant operation
  • Digital frequency reduction for better overall system efficiency
  • 800 V avalanche rugged CoolMOS™ with startup cell
  • Pb-free lead plating, halogen free mold compound, RoHS compliant
Performance Benefits
  • Higher efficiency
  • Low EMI noise
  • Low standby power
Applications
  • Adapter/Charger, Blue Ray/DVD player, Set-top Box, Digital Photo Frame
  • Auxiliary power supply of Server, PC, Printer, TV, Home theater/Audio System, White Goods
