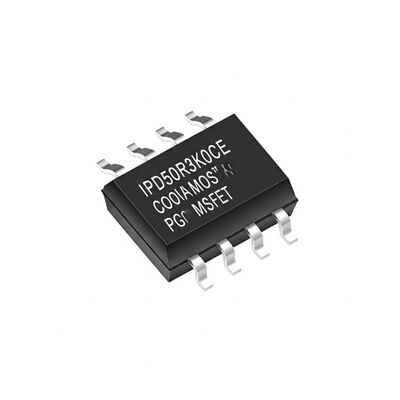

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance
IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

Gambar besar :  IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: IPD50R3K0CE
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: KE-252-3
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10.000 Potongan per Hari
Kontak

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistor with 3 Ohms Drain-Source Resistance

Deskripsi
Nomor bagian: IPD50R3K0CE Polaritas Transistor:: Saluran-N
VDS - Tegangan Breakdown Drain-Source:: 500 v Id - Arus Pembuangan Berkelanjutan:: 2.6 A
Rds On - Ketahanan Drain-Source:: 3 Ohm Vgs - Tegangan Sumber Gerbang:: - 20 V, 20 V
Menyoroti:

500V Drain-Source Breakdown Voltage Integrated Circuit Chip

,

1.7A Continuous Drain Current Power MOSFET Transistor

,

3 Ohms Drain-Source Resistance CoolMOS™ N-Channel

IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistors
IPD50R3K0CE Integrated Circuit Chip 500V 1.7A CoolMOS™ N-Channel Power MOSFET Transistors
Product Description
IPD50R3K0CE 500V CoolMOS™ CE is a price-performance optimized platform designed for cost-sensitive applications in consumer and lighting markets while maintaining high efficiency standards. This series provides all the benefits of fast-switching superjunction MOSFET technology while ensuring ease of use and offering the best cost-to-performance ratio available on the market.
Technical Specifications
Parameter Value
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 1.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 13V
Rds On (Max) @ Id, Vgs 3Ω @ 400mA, 13V
Vgs(th) (Max) @ Id 3.5V @ 30µA
Gate Charge (Qg) (Max) @ Vgs 4.3 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 84 pF @ 100 V
Power Dissipation (Max) 26W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Key Features
  • Extremely low losses due to very low FOM Rdson*Qg and Eoss
  • Very high commutation ruggedness
  • Easy to use and drive
  • Pb-free plating, Halogen free mold compound
  • Qualified for standard grade applications
Applications
  • PFC stages
  • Hard switching PWM stages
  • Resonant switching stages
  • PC Silverbox, Adapter, LCD & PDP TV
  • Indoor lighting systems
Related Product Types
Part Number Package
ISO7763FQDWQ1 16-SOIC
ISO7821FDWWR 16-SOIC
ISO7810FDWWR 16-SOIC
ISO7142CCQDBQQ1 16-SSOP
ISO7331FCQDWQ1 16-SOIC
ISO7340FCQDWQ1 16-SOIC
ISO7721FQDWRQ1 16-SOIC
ISO7820DWWR 16-SOIC
ISO7841DWWR 16-SOIC
ISO7321FCQDQ1 8-SOIC
ISO6721RFBQDRQ1 8-SOIC
OPA814DR 8-SOIC
INA310B4QDGKRQ1 8-TSSOP
INA310A2QDGKRQ1 8-TSSOP
INA310A1QDGKRQ1 8-TSSOP
INA310A5QDGKRQ1 8-TSSOP
INA310B2QDGKRQ1 8-TSSOP
INA310A3QDGKRQ1 8-TSSOP
INA296A2QDDFRQ1 SOT-23-8
INA241A2IDDFR SOT-23-8
INA186A1QDDFRQ1 SOT-23-8
INA190A2QDDFRQ1 SOT-23-8
INA296A2IDDFR SOT-23-8
INA241B3IDDFR SOT-23-8
INA241A5IDDFR SOT-23-8
INA190A4IDCKR 6-TSSOP
INA293A4QDBVRQ1 SOT-23-5
INA281B2QDBVRQ1 SOT-23-5
INA281A5QDBVRQ1 SOT-23-5
INA293B2QDBVRQ1 SOT-23-5
Frequently Asked Questions
Are your products original?
Yes, all products are original. Sourcing new original imported components is our primary business focus.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample orders and small quantity purchases. Sample costs vary depending on your order requirements and project specifications.
How to ship my order? Is it safe?
We use express carriers such as DHL, FedEx, UPS, TNT, and EMS. We can also use your preferred forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. For items not in stock, we will confirm the lead time based on your order quantity.
