SGM61163XTRI14G Integrated Circuit Chip 6A Synchronous Buck Converter with 4.5V to 18V Input and 200kHz to 2MHz Switching

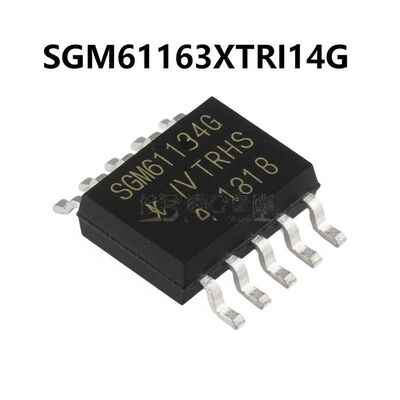

Gambar besar : SGM61163XTRI14G Integrated Circuit Chip 6A Synchronous Buck Converter with 4.5V to 18V Input and 200kHz to 2MHz Switching

Detail produk:

Tempat asal:	CN
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	SGM61163XTRI14G

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	TQFN-14
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

SGM61163XTRI14G Integrated Circuit Chip 6A Synchronous Buck Converter with 4.5V to 18V Input and 200kHz to 2MHz Switching

Deskripsi

Nomor bagian:	SGM61163XTRI14G	Sakelar RDSON Terintegrasi Rendah:	27mΩ/18mΩ
Frekuensi switching:	200kHz hingga 2MHz	Matikan Arus:	3,4μA (Jenis)
Kemasan:	TQFN-3.5×3.5-14L	Tegangan Masukan:	4.5V ke 18V
Menyoroti:	6A Synchronous Buck Converter , 4.5V to 18V Input Voltage IC Chip , 200kHz to 2MHz Switching Frequency Integrated Circuit Chip

SGM61163XTRI14G Integrated Circuit Chip 6A Synchronous Buck Converter TQFN14

The SGM61163XTRI14G is an efficient 6A synchronous buck converter with integrated power MOSFETs and a wide 4.5V to 18V input range. This current mode control device is optimized for high-density applications with minimal external components. With switching frequencies up to 2MHz, it enables compact solutions using smaller inductors and capacitors. The device supports standalone or tracking power supply configurations, with the SS/TR pin controlling output voltage startup ramp or tracking input.

Key Features

Low integrated RDSON switches: 27mΩ/18mΩ
Split rails for supply (VIN) and power (PVIN)
PVIN range: 1.8V to 18V
VIN range: 4.5V to 18V
Switching frequency: 200kHz to 2MHz
External clock synchronization
Voltage tracking capability
0.6V internal reference voltage
±1% reference voltage accuracy
3.4μA (typical) shutdown current
Hiccup mode current limit
Monotonic startup with pre-biased outputs
Adjustable soft-start time
Power sequencing capability
Power good output monitor for under-voltage and over-voltage protections
Adjustable input under-voltage lockout (UVLO)
Available in green TQFN-3.5×3.5-14L package

Applications

Industrial and commercial power systems
Distributed power systems
Server and storage equipment
Communications equipment
