IPD90P04P4L-04 40V 90A P-Channel Automotive MOSFET Transistor Integrated Circuit Chip

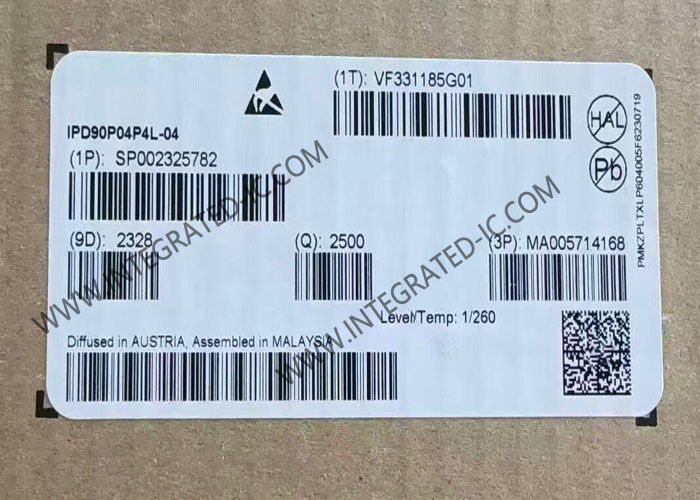

Gambar besar : IPD90P04P4L-04 40V 90A P-Channel Automotive MOSFET Transistor Integrated Circuit Chip

Detail produk:

Tempat asal:	CN
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	IPD90P04P4L-04

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	KE-252-3
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

IPD90P04P4L-04 40V 90A P-Channel Automotive MOSFET Transistor Integrated Circuit Chip

Deskripsi

Nomor bagian:	IPD90P04P4L-04	Polaritas transistor:	Saluran-P
Vds - Tegangan Kerusakan Sumber Pembuangan:	40 V	Id - Arus Pembuangan Terus Menerus:	90 A
Rds On - Resistensi Sumber Saluran:	6,6 mOhm	Qg - Biaya Gerbang:	135 nC
Menyoroti:	40V MOSFET Transistor , 90A Integrated Circuit Chip , P-Channel Automotive MOSFET

IPD90P04P4L-04 Integrated Circuit Chip 40V OptiMOS P2 P-Channel Automotive MOSFET Transistor

IPD90P04P4L-04 is a 40V, OptiMOS™-P2 Series P-Channel Automotive MOSFET Transistor in TO-252-3 package.

Specifications

Parameter	Value
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.3mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	176 nC @ 10 V
Vgs (Max)	+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds	11570 pF @ 25 V
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	PG-TO252-3-313
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63

Key Features

P-channel-Logic Level-Enhancement mode
Automotive AEC Q101 qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
Green package (RoHS compliant)
100% Avalanche tested
PPAP Capable Device

Applications

Automotive body control module (BCM)
Automotive battery management system (BMS) - high-voltage
EV traction inverter
