PIC16F946-I/PT 8-Bit Microcontroller MCU with 20MHz Speed LCD Driver and nanoWatt Technology

PIC16F946-I/PT 8-Bit Microcontroller MCU with 20MHz Speed LCD Driver and nanoWatt Technology
PIC16F946-I/PT 8-Bit Microcontroller MCU with 20MHz Speed LCD Driver and nanoWatt Technology PIC16F946-I/PT 8-Bit Microcontroller MCU with 20MHz Speed LCD Driver and nanoWatt Technology

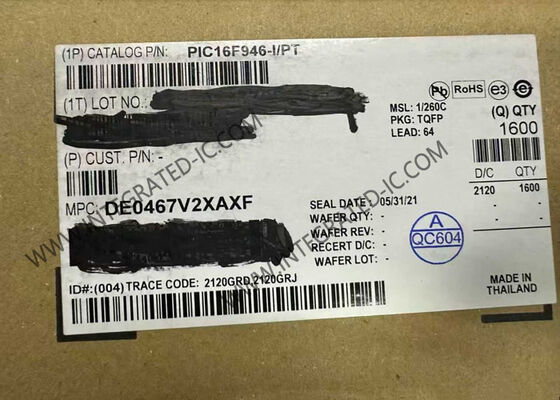

Gambar besar :  PIC16F946-I/PT 8-Bit Microcontroller MCU with 20MHz Speed LCD Driver and nanoWatt Technology

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: PIC16F946-I/PT
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: TQFP-64
Waktu pengiriman: 5-8 HARI KERJA
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

PIC16F946-I/PT 8-Bit Microcontroller MCU with 20MHz Speed LCD Driver and nanoWatt Technology

Deskripsi
Nomor bagian: PIC16F946-I/PT Inti:: PIC16
Ukuran Memori Program:: 14 kB Ukuran RAM Data:: 336B
Frekuensi jam maksimum:: 20 MHz Resolusi ADC:: 10 bit
Menyoroti:

20MHz Microcontroller MCU

,

LCD Driver 8-Bit Microcontroller

,

nanoWatt Technology PIC16F946-I/PT

PIC16F946-I/PT Microcontroller MCU
8-Bit 20MHz CMOS Microcontroller With LCD Driver And nanoWatt Technology
Product Overview
PIC16F946-I/PT is a PIC® 16F 8-Bit 20MHz CMOS Microcontroller featuring integrated LCD Driver and advanced nanoWatt Technology for power-efficient applications.
Technical Specifications
Parameter Specification
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Number of I/O 53
Program Memory Size 14KB (8K x 14)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 336 x 8
Voltage Supply 2V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Key Features
High-Performance RISC CPU:
  • Only 35 instructions to learn
  • All single-cycle instructions except branches
  • Operating speed: DC - 20 MHz oscillator/clock input
  • DC - 200 ns instruction cycle
  • Program Memory Read (PMR) capability
  • Interrupt capability
  • 8-level deep hardware stack
  • Direct, Indirect and Relative Addressing modes
Special Microcontroller Features:
  • Precision Internal Oscillator factory calibrated to ±1%
  • Software selectable frequency range of 8 MHz to 125 kHz
  • Two-Speed Start-up mode
  • External Oscillator fail detect for critical applications
  • Clock mode switching during operation for power savings
  • Software selectable 31 kHz internal oscillator
  • Power-Saving Sleep mode
  • Wide operating voltage range (2.0V-5.5V)
  • Industrial and Extended temperature range
  • Power-on Reset (POR)
  • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Brown-out Reset (BOR) with software control option
  • Enhanced Low-Current Watchdog Timer (WDT)
  • High-Endurance Flash/EEPROM cell with 100,000 write Flash endurance
Low-Power Features:
  • Standby Current: <100 nA @ 2.0V, typical
  • Operating Current: 11 μA @ 32 kHz, 2.0V, typical
  • Watchdog Timer Current: 1 μA @ 2.0V, typical
Peripheral Features:
  • Liquid Crystal Display module with up to 60/96/168 pixel drive capability
  • Up to 24/35/53 I/O pins and 1 input-only pin
  • High-current source/sink for direct LED drive
  • In-Circuit Serial Programming™ (ICSP™) via two pins
  • Analog comparator module with two analog comparators
  • 10-bit A/D Converter with up to 8 channels
  • Multiple timer/counter modules
  • Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
  • Up to 2 Capture, Compare, PWM modules
  • Synchronous Serial Port (SSP) with I2C™
Other Available Components
Part Number Package
F2800133RHBR VQFN-32
AM62A34ASMSIAMBRQ1 484-FCBGA
AM62A74AUMHAAMBR 484-FCBGA
AM62A74AUMSIAMBRQ1 484-FCBGA
F280034PTRQ1 48-LQFP
F2800157QPMRQ1 LQFP-64
MSPM0L1345TDGS28R 20-VSSOP
MSPM0L1303SRGER 24-VQFN
Frequently Asked Questions
Are your products original?
Yes, all products are original, new original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample order and small order. Sample cost is different according to your order or project.
How to ship my order? Is it safe?
We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
