CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector
CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

Gambar besar :  CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: CLE-110-01-G-DV-AK-TR
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: 20POS
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

CLE-110-01-G-DV-A-K-TR 20 Position 0.80mm Pitch Tiger Beam Socket Strip Board to Board Connector

Deskripsi
Nomor Bagian: CLE-110-01-G-DV-AK-TR Jumlah posisi: 20 Posisi
Lapangan - Kawin: 0,8 mm (0,031 in) Jumlah baris: 2 Baris
Peringkat saat ini (amp): 2,7A per Kontak Kontak Finish Ketebalan - Kawin: 10,0µin (0,25µm)
Menyoroti:

20 Position Socket Strip

,

0.80mm Pitch Connectors

,

Tiger Beam Board to Board Connector

CLE-110-01-G-DV-A-K-TR Connectors 20POS Socket 0.80mm Tiger Beam Single Beam Socket Strip
CLE-110-01-G-DV-A-K-TR is a 0.80mm Tiger Beam™ cost-effective single beam socket strip designed for reliable board-to-board connections.
Product Specifications
Specification Details
Series CLE
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 2
Row Spacing - Mating 0.047" (1.20mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.130" (3.30mm)
Operating Temperature -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide, Pick and Place
Current Rating (Amps) 2.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Contact Finish Thickness - Post 10.0µin (0.25µm)
Key Features
  • Available with cost-saving gold plating
  • Cost effective Tiger Beam™ contact system
  • Ideal for pass-through applications
  • Available up to 180 positions

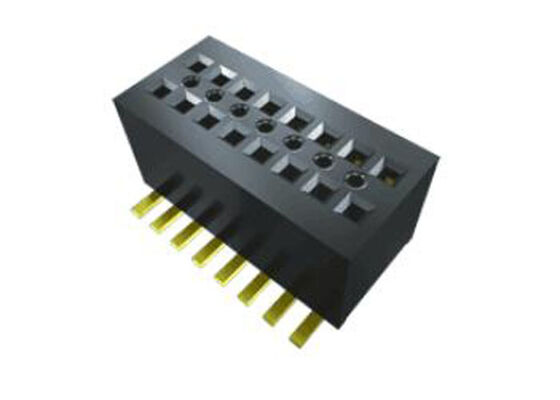

Product Image
