LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

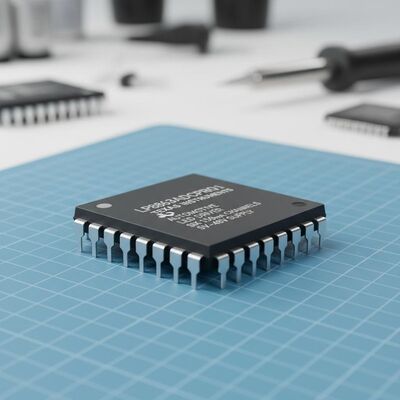

LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

Gambar besar :  LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: LP8863ADCPRQ1
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: HTSSOP-38
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10.000 Potongan per Hari
Kontak

LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

Deskripsi
Nomor Bagian: LP8863ADCPRQ1 Jumlah output:: 6 Keluaran
Arus Keluaran:: 150 mA Tegangan suplai - maks:: 48 V
Tegangan suplai - min:: 3V Frekuensi Operasi:: 300 kHz hingga 2,2 MHz
Menyoroti:

Six 150-mA Channels LED Driver

,

Automotive Grade Integrated Circuit Chip

,

3V to 48V Supply Voltage LED Driver

LP8863ADCPRQ1 Automotive LED-Backlight Driver
High-efficiency automotive LED driver with boost controller featuring six high-precision current sinks for display backlight applications.
Product Overview
The LP8863ADCPRQ1 is an automotive-grade high-efficiency LED driver with boost controller. The six high-precision current sinks support phase shifting that automatically adjusts based on the number of channels in use. Current sink brightness can be controlled individually and globally through SPI or I2C interface, with additional global brightness control via PWM input.
Technical Specifications
Parameter Value
Type DC DC Controller
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 6
Voltage Supply Range 3V to 48V
Current per Channel 150mA
Frequency 300kHz to 2.2MHz
Dimming PWM
Applications Backlight
Operating Temperature -40°C to 125°C (TA)
Grade Automotive
Key Features
  • Qualified for Automotive Applications (AEC-Q100)
  • Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature
  • Input Voltage Operating Range 3V to 48V
  • Six High-Precision Current Sinks with 1% Current Matching (typical)
  • Dimming Ratio 32,000:1 Using 152-Hz LED Output PWM Frequency
  • Up to 16-bit LED Dimming Resolution with SPI, I2C, or PWM Input
  • Automatically Detects Used LED Strings and Adjusts LED-Channel Phase Shift
  • Independent Current Control for Each Channel
  • Hybrid PWM and Current Dimming Function
  • Up to 47-V VOUT Boost or SEPIC DC/DC Controller
  • Switching Frequency 300kHz to 2.2MHz
  • Boost Spread Spectrum for Reduced EMI
  • Boost Sync Input to Set Boost Switching Frequency from External Clock
  • Integrated Charge Pump Supports Low VIN Conditions
  • Output Voltage Automatically Discharged When Boost is Disabled
  • Extensive Fault Diagnostics
Primary Applications
Backlight for automotive display systems including:
  • Automotive Infotainment Systems
  • Automotive Instrument Clusters
  • Smart Mirrors
  • Heads-Up Displays (HUD)
  • Central Information Displays (CID)
  • Audio-Video Navigation (AVN) Systems
Related Product Types
Part Number Package
SDINDDH6-32G-XI BGA
SDINBDG4-32G-ZI BGA
SDINBDG4-64G-ZI BGA
SDINADF4-32G-H BGA
SDINBDG4-32G-H BGA
SDINDDH4-256G BGA
SDINBDG4-8G-A BGA
SDINDDH6-16G-ZA BGA
SDINBDG4-16G-H BGA
SDINBDG4-8G-H BGA
SDINDDH6-256G-XI BGA
SDINBDA6-256G-I1 BGA
SDINBDG4-64G-A BGA
SDINBDG4-32G-A BGA
SDINDDH4-128G BGA
SDINDDH6-128G-XI BGA
SDINDDH6-64G-XI BGA
SDINBDV4-128G BGA
SDINBDV4-256G BGA
SDINBDG4-64G-ZA2 BGA
SDINBDA6-32G-XA1T BGA
SDINBDA6-64G-ZA1T BGA
SDINBDG4-64G-ZAT2 BGA
SDINDDH6-16G-XI BGA
SDINDDH6-256G-XAT BGA
SDINDDH6-64G-ZA BGA
SDINBDV4-64G-P BGA
SDINDDH6-16G-XA2 BGA
1SG065HH1F35I2LG 1152-BBGA
1ST040EH1F35I1VG 1152-BBGA
Frequently Asked Questions
Are your products original?
Yes, all products are original. New original import is our purpose.
Which Certificates do you have?
We are ISO 9001:2015 Certified Company and member of ERAI.
Can you support small quantity order or sample? Is the sample free?
Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.
How to ship my order? Is it safe?
We use express carriers including DHL, FedEx, UPS, TNT, and EMS. We can also use your suggested forwarder. Products are carefully packed to ensure safety, and we take responsibility for any product damage to your order.
What about the lead time?
We can ship stock parts within 5 working days. For non-stock items, we will confirm lead time based on your order quantity.
