10120667-101LF Mini-SAS HD Connector 32POS I/O with 6 Gb/s and 12 Gb/s Data Rates for SAS Storage Interface

10120667-101LF Mini-SAS HD Connector 32POS I/O with 6 Gb/s and 12 Gb/s Data Rates for SAS Storage Interface
10120667-101LF Mini-SAS HD Connector 32POS I/O with 6 Gb/s and 12 Gb/s Data Rates for SAS Storage Interface 10120667-101LF Mini-SAS HD Connector 32POS I/O with 6 Gb/s and 12 Gb/s Data Rates for SAS Storage Interface

Gambar besar :  10120667-101LF Mini-SAS HD Connector 32POS I/O with 6 Gb/s and 12 Gb/s Data Rates for SAS Storage Interface

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: 10120667-101LF
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: 32 pos
Waktu pengiriman: 5-8 Hari Kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

10120667-101LF Mini-SAS HD Connector 32POS I/O with 6 Gb/s and 12 Gb/s Data Rates for SAS Storage Interface

Deskripsi
Nomor Bagian: 10120667-101LF Jumlah posisi: 32 Posisi
Peringkat Tegangan: abad ke-30 Peringkat Saat Ini: 500mA
Jumlah port: 2 port Kecepatan Data: 6 Gb/dtk, 12 Gb/dtk
Menyoroti:

6 Gb/s Mini-SAS HD Connector

,

12 Gb/s SAS Storage Connector

,

32 Position I/O Connector

10120667-101LF Connectors Mini-SAS HD SAS Storage Interface 32POS I/O Connectors
Product Overview

The 10120667-101LF is a Mini-SAS HD next-generation SAS storage interface connector designed to address channel bandwidth requirements of 6Gb/s, 12Gb/s and 14Gb/s, meeting or exceeding SAS 2.1 and proposed SAS 3.0 specifications. This product provides greater port density (11mm port-to-port) compared to the existing MiniSAS 2.0 product (19.01mm port-to-port).

Technical Specifications
Specification Value
Connector Style Receptacle (1x2)
Connector Type SAS, Mini HD
Number of Positions 32 (16 x 2)
Mounting Type Through Hole
Termination Press-Fit
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Key Features
  • IMLA based board connector ensures compliance to SAS 2.1 & proposed 3.0 electrical performance criteria
  • Internal and external board connector and cable assemblies provide end-to-end application solutions
  • 1X1, 1X2 and 1X4 connector/cage assemblies offer product family design flexibility
  • All board connectors and configurations are fully 6G and 12G compliant, allowing use of same part numbers when system speeds increase from 6G to 12G
  • Metal cages on external connectors and cables provide 360° EMI shielding, replacing problematic EMC elastomeric gaskets
  • Cable assemblies offered in 4x and 8x configurations
  • Eye-of-the-needle connector and cage single step termination yields consistent application to the PCB
  • External cable strain relief results in axial pull force exceeding 20lbs
  • Cable latch design reduces cable insertion force and un-mating issues
  • Pull tabs available in multiple lengths in Pantone 279 color to meet various application needs
  • Positive stop feature on casting prevents external cable assembly mating over-travel
  • Hybrid external cables (mini-SAS HD to mini-SAS) allow backwards compatible cabling with legacy system hardware
Applications
Data Systems
  • Servers
  • RAID systems
  • Storage racks
External Storage Systems
  • SAS/SATA HBA interfaces
  • Direct-attached storage (DAS)
Communications
  • Switches

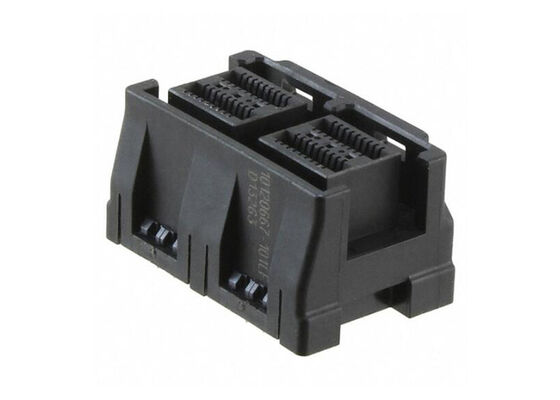

Product Image
