STM8L052C6T6TR Microcontroller MCU 8-Bit 16MHz Ultra-low-power EnergyLite Microcontroller

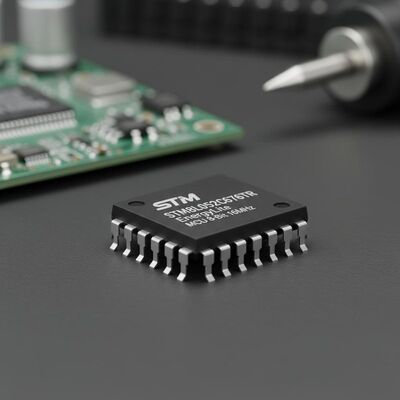

Gambar besar : STM8L052C6T6TR Microcontroller MCU 8-Bit 16MHz Ultra-low-power EnergyLite Microcontroller

Detail produk:

Tempat asal:	CN
Nama merek:	Original Factory
Sertifikasi:	Lead free / RoHS Compliant
Nomor model:	STM8L052C6T6TR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	Contact for Sample
Kemasan rincian:	48-LQFP
Waktu pengiriman:	5-8 Hari Kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union

Kontak

STM8L052C6T6TR Microcontroller MCU 8-Bit 16MHz Ultra-low-power EnergyLite Microcontroller

Deskripsi

Nomor Bagian:	STM8L052C6T6TR	Prosesor Inti:	STM8L
Ukuran Inti:	8-bit	Kecepatan:	16MHz
Konektivitas:	I2C, IrDA, SPI, UART/USART	Berat Satuan::	180 mg
Menyoroti:	8-Bit Microcontroller MCU , 16MHz STM8L052C6T6TR , Ultra-low-power EnergyLite Microcontroller

The STM8L052C6T6TR is a medium-density value line microcontroller from the STM8L ultra-low-power 8-bit family. This EnergyLite microcontroller features an enhanced STM8 CPU core that delivers up to 16 MIPS at 16 MHz while maintaining CISC architecture advantages with improved code density, 24-bit linear addressing space, and optimized low-power operation architecture.

Technical Specifications

Parameter	Specification
Core Size	8-Bit
Speed	16MHz
Connectivity	I2C, IrDA, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT
Number of I/O	41
Program Memory Size	32KB (32K x 8)
Program Memory Type	FLASH
EEPROM Size	256 x 8
RAM Size	2K x 8
Voltage Supply (Vcc/Vdd)	1.8V ~ 3.6V
Data Converters	A/D 25x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

Operating Conditions

Operating power supply: 1.8 V to 3.6 V
Temperature range: -40 °C to 85 °C

Low-Power Features

Five low-power modes: Wait, Low-power run (5.1 μA), Low-power wait (3 μA), Active-halt with full RTC (1.3 μA), Halt (350 nA)
Consumption: 195 μA/MHz + 440 μA
Ultra-low leakage per I/O: 50 nA
Fast wakeup from Halt: 4.7 μs

Advanced STM8 Core

Harvard architecture and 3-stage pipeline
Max frequency 16 MHz, 16 CISC MIPS peak
Up to 40 external interrupt sources

Reset and Supply Management

Low-power, ultra-safe BOR reset with five selectable thresholds
Ultra-low-power POR/PDR
Programmable voltage detector (PVD)

Clock Management

32 kHz and 1 to 16 MHz crystal oscillator
Internal 16 MHz factory-trimmed RC
Internal 38 kHz low consumption RC
Clock security system

Additional Features

Low-power RTC with BCD calendar and alarm interrupt
Auto-wakeup from Halt with periodic interrupt
LCD: up to 4x28 segments with step-up converter
32 KB Flash program memory and 256 bytes data EEPROM with ECC, RWW
Flexible write and read protection modes
2 Kbytes of RAM
Four-channel DMA supporting ADC, SPI, I2C, USART, timers
One channel for memory-to-memory transfer
12-bit ADC up to 1 Msps/25 channels with internal reference voltage
Multiple timers including 16-bit and 8-bit variants
Two watchdogs: Window and Independent
Beeper timer with 1-, 2- or 4-kHz frequencies
Synchronous serial interface (SPI)
Fast I2C 400 kHz SMBus and PMBus
USART (ISO 7816 interface and IrDA)
Up to 41 I/Os, all mappable on interrupt vectors
Fast on-chip programming and non-intrusive debugging with SWIM
Bootloader using USART
