NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip
NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

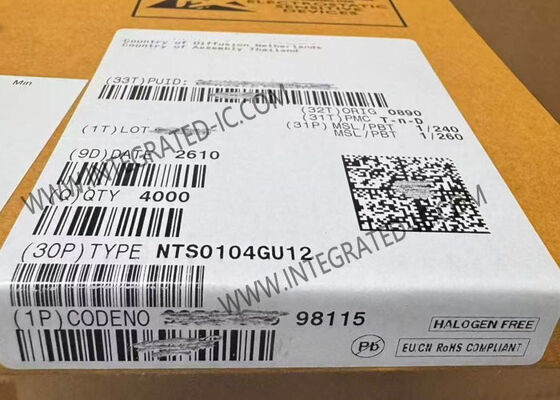

Gambar besar :  NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: NTS0104GU12
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: XQFN-12
Waktu pengiriman: 5-8 Hari Kerja
Syarat-syarat pembayaran: T/T, L/C, Western Union
Kontak

NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

Deskripsi
Nomor bagian: NTS0104GU12 Tipe Penerjemah: Tingkat Tegangan
Jenis saluran: dua arah Kecepatan Data: 50Mbps
Saluran per Sirkuit: 4 Suhu Operasional: -40°C ~ 125°C (TA)

NTS0104GU12 Integrated Circuit Chip 4-Bit Dual-Supply Translating Transceiver 50Mbps Voltage Level Translator
Product Overview

The NTS0104GU12 is a 4-bit, dual supply translating transceiver with auto direction sensing that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enables input (OE), and two supply pins (VCC(A) and VCC(B)).

VCC(A) can be supplied at any voltage between 1.65 V and 3.6 V, and VCC(B) can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between various voltage nodes (1.8 V, 2.5 V, 3.3 V, and 5.0 V).

Specifications
Product Category Translation - Voltage Levels
Type Dual Supply Translating Transceiver
Data Rate 50 Mbps
Package / Case XQFN-12
Supply Voltage - Max 5.5 V
Supply Voltage - Min 1.65 V
Propagation Delay Time 5.8 ns
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Mounting Style SMD/SMT
Operating Supply Current 45 uA
Output Type Tri-State
Power Dissipation 250 mW
Key Features
  • Wide supply voltage range: VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
  • Maximum data rates: Push-pull: 50 Mbit/s
  • IOFF circuitry provides partial power-down mode operation
  • Inputs accept voltages up to 5.5 V
  • Comprehensive ESD protection exceeding industry standards
  • Latch-up performance exceeds 100 mA per JESD 78B Class II
  • Specified from -40 °C to +85 °C and -40 °C to +125 °C
