IMX678-AAQR CMOS Image Sensor with 8.40 M pixels Low Power Consumption and High Dynamic Range (HDR)

IMX678-AAQR CMOS Image Sensor with 8.40 M pixels Low Power Consumption and High Dynamic Range (HDR)
IMX678-AAQR CMOS Image Sensor with 8.40 M pixels Low Power Consumption and High Dynamic Range (HDR)

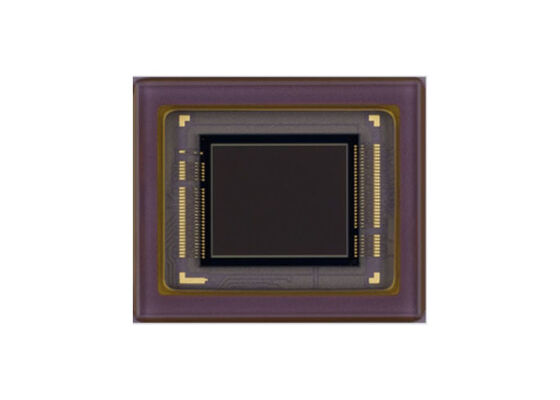

Gambar besar :  IMX678-AAQR CMOS Image Sensor with 8.40 M pixels Low Power Consumption and High Dynamic Range (HDR)

Detail produk:
Tempat asal: CN
Nama merek: Original Factory
Sertifikasi: Lead free / RoHS Compliant
Nomor model: IMX678-AAQR
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: Contact for Sample
Kemasan rincian: LGA-132
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10.000 Potongan per Hari
Kontak

IMX678-AAQR CMOS Image Sensor with 8.40 M pixels Low Power Consumption and High Dynamic Range (HDR)

Deskripsi
Nomor bagian: IMX678-AAQR Kemasan: LGA-132
Ukuran gambar: Diagonal 8,86 mm (Tipe 1/1.8) kira-kira. 8,40 M piksel, Semua piksel Frekuensi masukan:: 13,5MHz / 18MHz / 24MHz / 27MHz / 36MHz / 37,125MHz / 72MHz / 74,25MHz

IMX678-AAQR Sensor IC Diagonal 8.86mm CMOS Solid-State Image Sensor With Square Pixel
Product Overview

IMX678-AAQR is a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

Technical Specifications
  • Image size: Diagonal 8.86 mm (Type 1/1.8) approx. 8.40 M pixels, All pixels
  • Total number of pixels: 3856 (H) × 2200 (V) approx. 8.48 M pixels
  • Number of effective pixels: 3856 (H) × 2180 (V) approx. 8.40 M pixels
  • Number of active pixels: 3856 (H) × 2176 (V) approx. 8.39 M pixels
  • Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29 M pixels
  • Unit cell size: 2.0 μm (H) × 2.0 μm (V)
  • Optical black: Horizontal (H) direction: Front 0 pixels, rear 0 pixels; Vertical (V) direction: Front 20 pixels, rear 0 pixels
  • Package: 132 pin LGA
Key Features
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Input frequency: 13.5MHz / 18MHz / 24MHz / 27MHz / 36MHz / 37.125 MHz / 72 MHz / 74.25 MHz
  • Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29M pixel
  • Readout modes: All-pixel scan mode, Horizontal/Vertical 2/2-line binning mode, Window cropping mode
  • Horizontal/Vertical direction - Normal/Inverted readout mode
  • Readout rate: Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 72 frame/s
  • High dynamic range (HDR) function: Digital overlap HDR, Clear HDR
  • Synchronizing sensors function
  • Variable-speed shutter function (resolution 1H units)
  • CDS/PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB); 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
  • Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane / 8Lane / 4Lane × 2ch)
  • RAW10 / RAW12 output
  • Non anti-reflective coating glass
Primary Application

Security cameras
